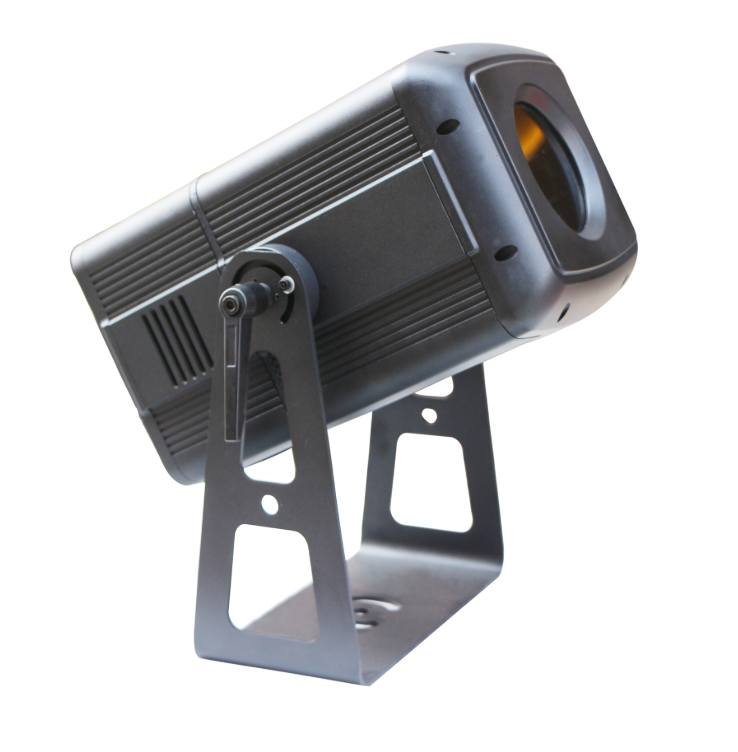

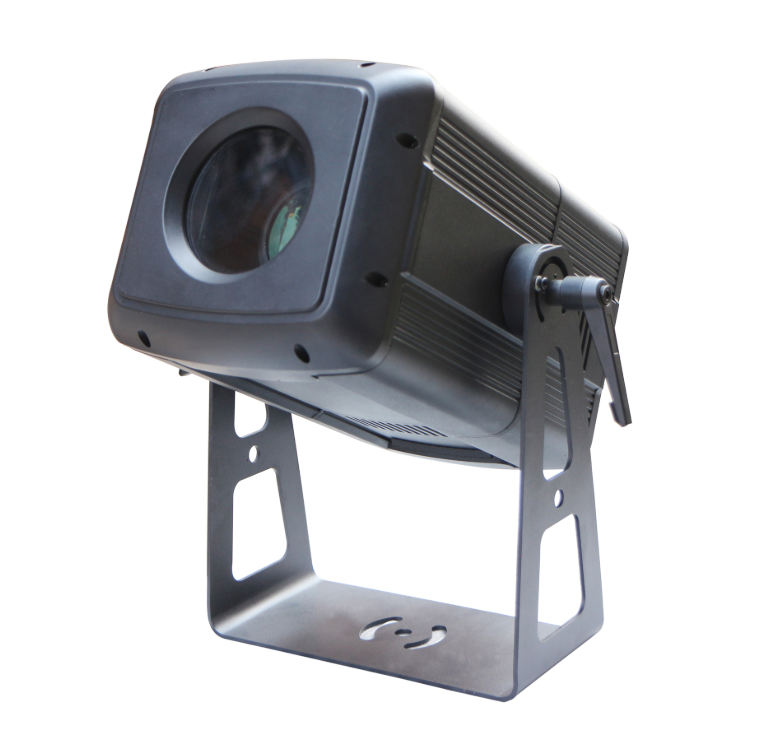

BRILLIANT EFX NZ100

• Gobo wheel: 4 rotating gobos plus open, indexing, variable rotation
• Beam Angles: Preset 30°, 40° 50°, 60° to cover medium to very wide angles
• Focus: Motorized
• Dimming: Electronic, constantly variable 0-100%, 16-bit control
• Shutter: Electronic, strobe and pulse effects, instant open and blackout

• Power Supply: AC100V-260V, 50/60Hz
• Auto Switching Power Supply, internal power supply.
• Power Consumption: Maximum 130W

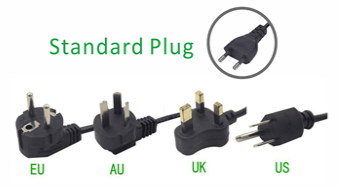

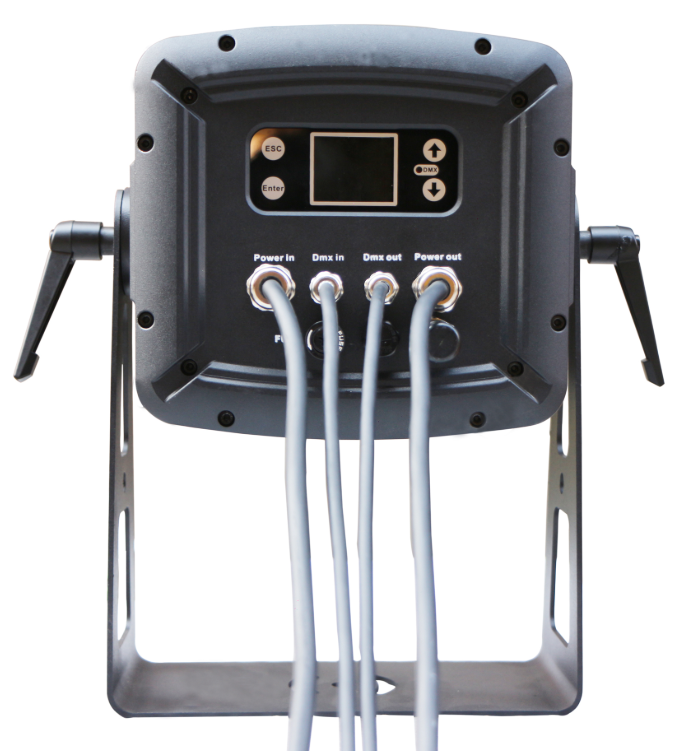

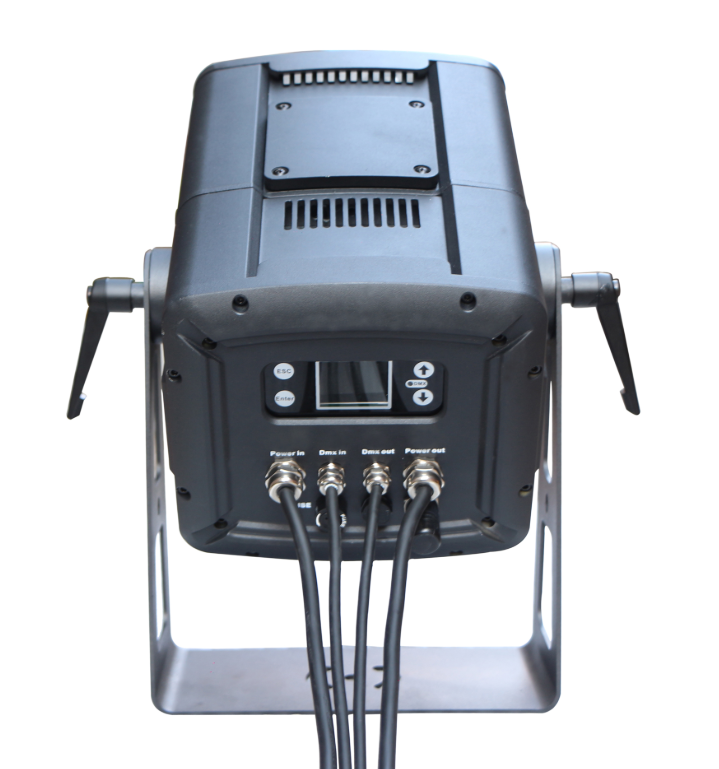

• Power Connection: Power In (3 pins) /Power Out (3 pins)
• Light Source: 100W LED Engine, White Color
• Lumens: 13,000
• Color Temperature: 9200K
• LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
• Projection Beam Angles: 30°, 40°, 50°, 60°
• Focus:. Electronic motorized linear focusing
• DMX 512 control

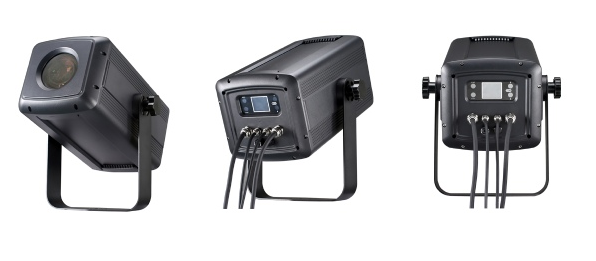

• Data Connection: 3 pin DMX In/DMX Out
• DMX Channels: 7 DMX 512 channels
• Control Mode: Standard: DMX, Auto, Sound, Program, W-DMX (optional, please call.)
• Self configured auto programs: 30
• Preset programs: 30 self-configured automatic programs for convenient usage

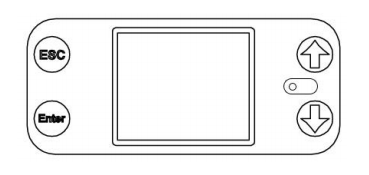

• Display: Full Color 180° Reversible LCD
• Dimming: Smooth 0 – 100% electronic dimming

• Strobe: 0-20Hz variable speed, pulse and random strobe
• Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.

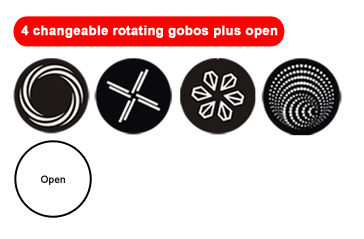

• Gobos: 4 inter-changeable rotating glass gobos plus open, Shake / Bi-directional rotating rainbow effect
• Thermal management system ensures long life of LEDs
• Cooling: 1 Fan plus water cooling system
• Motors: 3 stepper motors.
• Housing: Extruded Aluminum
• Housing Color: Black
• IP Rating: IP65
• Listing: CE, LVD, RoHS, EMC
• Environment Temperatures: -15°C - 40°C (5°F - 104°F)

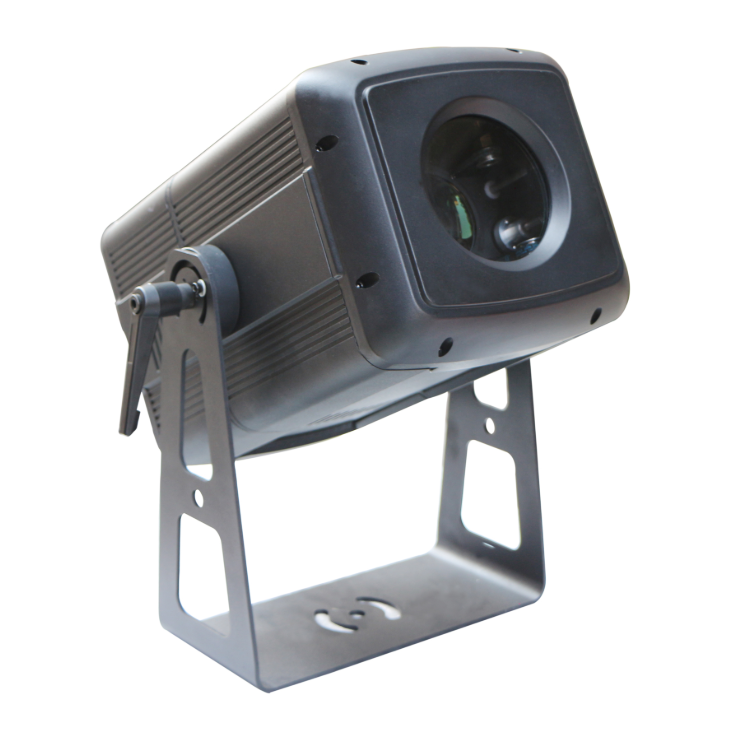

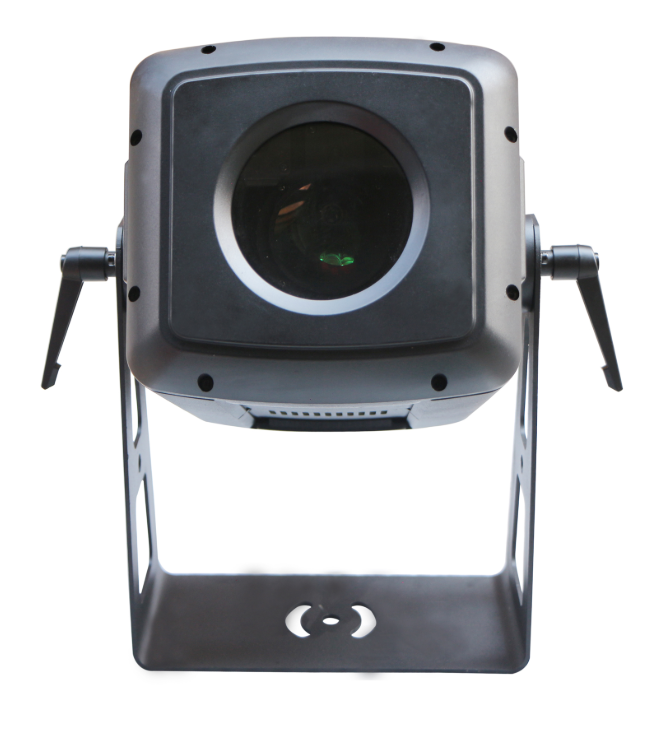

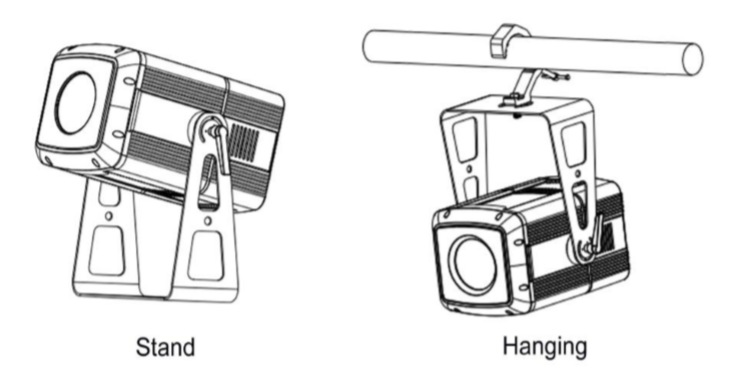

• Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down). The fast lock can fix the angle desired.
• Gobo Size: Outer Diameter: 15.9mm, Inner Diameter: 10mm. There is a small access panel on the top of the projector that is used for changing gobos.

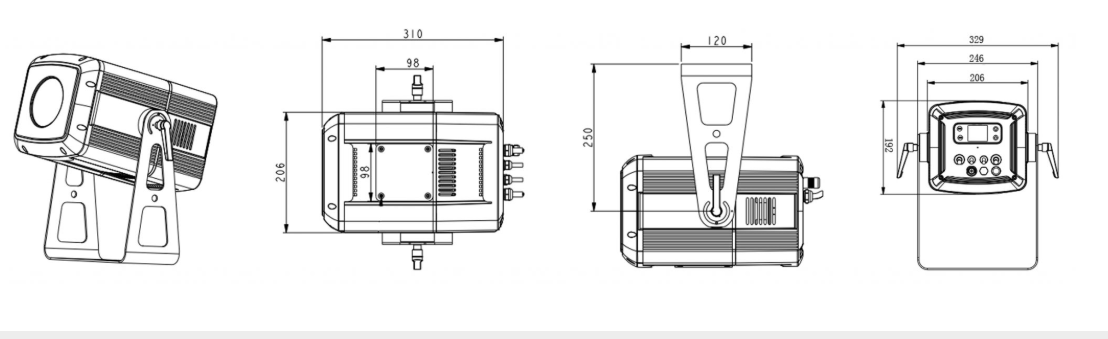

• Dimensions: Please see below.
• Weight: 9.45 kgs (20.79 lbs)
• Replacement Fuse: 3A
• Warranty: One year limited warranty
• Model: BRL-EFX-NZ100

• Solid State LED Lighting (SSL) Technology
• COB (Chip-On-Board) White LED technology
• Rivals and replaces HID and halogen lamps with a fraction of power consumption
• Outdoor and Indoor use
• Multi-image projection
• Rotating images
• Preset beam angles
• Motorized focus
• Dimming
• Strobing
• DMX 512
• Various control modes
• Innovative multi-purpose mounting yoke

• Long life LED light source requires no replacement during the life of the projector
• Compact and lightweight
• Enables you to create the look you want, and change it easily and quickly
• Very user friendly, very easy to use
• Stunning brightness
• Extremely accurate focus
• Elegant and compact design
• Low running cost
• Energy efficiency
• No IR and no UV
• No Mercury
• Virtually maintenance free

• CH1 DIMMER
• CH2 STROBE
• CH3 GOBO WHEEL
• CH4 GOBO ROTATION
• CH5 GOBO ROTATION FINE
• CH6 FOCUS
• CH7 RESET

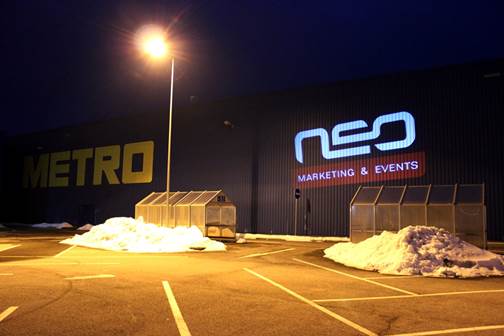

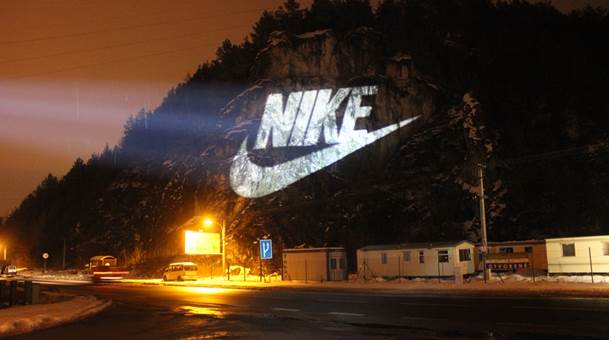

The projector features 4 freely control modes including DMX, auto, sound and program. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller./p>
