The ADVERTISER 150-1050 XNTR is a newly developed high power LED image projector designed for outdoor and indoor use.
It is driven by a 150W high power single LED chips precise packed on pure copper board.
LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
The ADVERTISER 150-1050 XNTR rivals classic high power discharge projectors at much lower cost, power consumption and size.
The ADVERTISER 150-1050 XNTR is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) Technology
- High power single LED chips precise packed on pure copper board.
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- A variety of lenses to address all kind of projection requirements
- Image projection
- Static and Rotating options
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Long warranty 2 years
- Power requirement: AC85V-265V, 50/60Hz
- Power Supply: Auto Switching Power Supply: integrated (standard) in the fixture (CE, RoHS) or external optional at additional cost (CE, RoHS, UL, KC, CSA, PSE, SAA, SASO)
- Power Consumption: Maximum 155W
- LEDs: OSRAM 150W High power single LED chips precise packed on pure copper board
- Lumens: 19,500
- Color Temperature: 7000‾9000K standard is 6500K, color temperature is customizable.
- LED Lifespan: >45,000 hours
- Beam Angles: 15°, 30°, 50°
- Focus: Manual in the front like camera
- Zoom: Manual in the front like camera. Zoom capabilities extend the range of coverage by 20%!!
- Lensing Multiple HD lensing system
- Thermal management system ensures long life of LEDs
- Cooling: 1 fan and heat sink and extruded fins for heat dissipation
- Housing: Extruded Aluminum AL1070
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Working Operating Temperature: -40°C – 70°C (-40°F – 158°F)
- Mounting: Yoke. The yoke can run through the length of the projector body to accommodate multiple pointing directions. The yoke acts also as a stand foot. The yoke can be screwed to a wall or a ceiling or fastened with a C clamp.
- Gobo Size: Outer Diameter: 48mm, Inner Diameter: 30mm
- Static Gobo: Yes
- Rotating Gobo: Yes. Can be also used to position the image to where needed.
- Remote Control: Yes. Please see below.
- Dimensions: .Lengths may vary based on the selected front lenses. D280mm, L150-240mm, H210mm (11” x 5.9” - 9.45” x 8.27”)
- Weight: 5kgs (11lbs)
- Model: AD-150-1050
FEATURES
- Solid State LED Lighting (SSL) Technology
- High power single LED chips precise packed on pure copper board.
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- A variety of lenses to address all kind of projection requirements
- Image projection
- Static and Rotating options
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Long warranty 2 years
TECHNICAL SPECIFICATIONS
- Power requirement: AC85V-265V, 50/60Hz
- Power Supply: Auto Switching Power Supply: integrated (standard) in the fixture (CE, RoHS) or external optional at additional cost (CE, RoHS, UL, KC, CSA, PSE, SAA, SASO)
- Power Consumption: Maximum 155W
- LEDs: OSRAM 150W High power single LED chips precise packed on pure copper board
- Lumens: 19,500
- Color Temperature: 7000‾9000K standard is 6500K, color temperature is customizable.
- LED Lifespan: >45,000 hours
- Beam Angles: 15°, 30°, 50°
- Focus: Manual in the front like camera
- Zoom: Manual in the front like camera. Zoom capabilities extend the range of coverage by 20%!!
- Lensing Multiple HD lensing system
- Thermal management system ensures long life of LEDs
- Cooling: 1 fan and heat sink and extruded fins for heat dissipation
- Housing: Extruded Aluminum AL1070
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Working Operating Temperature: -40°C – 70°C (-40°F – 158°F)
- Mounting: Yoke. The yoke can run through the length of the projector body to accommodate multiple pointing directions. The yoke acts also as a stand foot. The yoke can be screwed to a wall or a ceiling or fastened with a C clamp.
- Gobo Size: Outer Diameter: 48mm, Inner Diameter: 30mm
- Static Gobo: Yes
- Rotating Gobo: Yes. Can be also used to position the image to where needed.
- Remote Control: Yes. Please see below.
- Dimensions: .Lengths may vary based on the selected front lenses. D280mm, L150-240mm, H210mm (11” x 5.9” - 9.45” x 8.27”)
- Weight: 5kgs (11lbs)
- Model: AD-150-1050

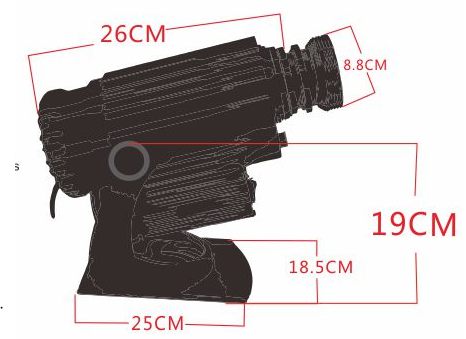

DIMENSIONS
BEAM ANGLES
The ADVERTISER 150-1050 XNTR is ideal for store fronts, kiosks, window displays, POP displays, indoor advertising, or architectural, entertainment and hospitality venues.
Corporations and franchises are discovering the marketing power of this projector, and how it can save time, cut costs, and project a strong image to capture consumer attention.
The ADVERTISER 150-1050 XNTR is the foundation of a new mass-market and POP marketing system that broadens creative options, improves efficiency, and lowers overall production costs.
It can be used together with existing forms of POP advertising, display and promotional graphics - or replace them.
The ADVERTISER 150-1050 XNTR can help centralize or decentralize corporate advertising and promotional campaigns.
Create a consistent message at several locations - or tailor art to suit specific needs.
It is ideal for ceilings, walls, truss and floor or where you need that extra punch to cut through ambient light.
If you want to lift your image, the ADVERTISER 150-1050 XNTR is the answer.
The ADVERTISER 150-1050 XNTR projector is equipped with an LED light source designed to work for the full lifetime of the projector so there is no need for a replacement lamp thus saving you a lot of money not only on the lamp replacement but on maintenance as well.
Industrial and business enterprises are increasingly aware of the opportunities and benefits brought by the projection of navigation, hazard and safety signs.
Replacing painted safety labels or stickers because they wear off easily in heavy traffic, restoration is time consuming and its cost is high.
The ADVERTISER 150-1050 XNTR is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
