The BRILLIANT EFX Z300ST is a newly developed Super Power LED multi-image multi-effect (rotating images, color changer, zoom, prism, dimming, strobe) special effects projector designed for long throw outdoor use.
All the functions are controlled by a DMX 512 allowing maximum creativity and flexibility.
It is driven by a 300W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
The BRILLIANT EFX Z300ST rivals classic high power discharge projectors at much lower cost, power consumption and size.
The BRILLIANT EFX Z300ST is easy to install and operate and is light weight housed in a stylish and functional housing.
What is a stars gobos projector? It is a logo projector of projecting stars gobo.
The stars gobo is one of the greatest additions to many events, and is extremely popular.
BRILLIANT EFX Z300ST stars light projector is best admired on the ceiling of your venue, giving the illusion of a starry night sky.
Besides, our gobo lighting provides a wonderful backdrop to any wedding, or even corporate event, as well as provides impressive photo opportunities.
The outdoor image projector fits 1 rotating gobo wheel with 6 inter-changeable glass gobos, and 1 color wheel with 6 filter colors.
A wonderful function of the outdoor gobo projector is that the half color function which could create two different colors in one star image, bringing colorful shining stars.
Additional functions like zoom from 11 degree to 46 degree and 4-facet prism bring you with endless creative freedom and amazing experience.
There are various of control modes in the star gobo projection light in including DMX, auto, sound, program for your freely selection.
The built-in 30 self-configured automatic programs make user configure automatic program freely via setting the function value on the LCD display of the logo projection light, very easy operation.
The stars gobo projection light is a perfect match for projection any stars on large-scale wedding, Christmas party, meeting room, restaurant, showroom, promotion, etc., indoor and outdoor environment is available.
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image star projection
- Rotating and static images
- Color changer
- Motorized zoom
- Multi facet prism
- Dimming
- Strobing
- DMX 512
- Various control modes
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Power Supply: AC100V-260V, 50/60Hz
- Auto Switching Power Supply, internal power supply.
- Power Consumption: Maximum 400W
- Power Connection: Power In (3 pins) /Power Out (3 pins)
- Light Source: 300W High Power LED Engine, White Color
- Lumens: 39,000
- Color Temperature: 6500K
- LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
- Projection Angles: 11°- 46°
- Focus:. Electronic linear focusing, each effect within 5 meters can be clearly adjusted; all patterns can achieve linear infinity zoom
- Zoom: Electronic
- DMX 512 control
- Data Connection: 3 pin DMX In/DMX Out
- DMX Channels: 10 DMX 512 channels
- Control Mode: Standard: DMX, Auto, Sound, Program, W-DMX (optional, please call.)
- Self configured auto programs: 30
- Display: Full Color 180° Reversible LCD
- Dimming: Smooth 0 – 100% electronic dimming
- Strobe: 0-25Hz variable speed, pulse and random strobe
- Prism: 4-facet circular rotating prism, independent control
- Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
- Rotating Gobo Wheel with 6 interchangeable glass gobos plus open. Index, shake and two directional rotation.
- Color Changer: 1 Color Wheel with 6 filters plus open, full and half color function, two directional rainbow effects.
- Thermal management system ensures long life of LEDs
- Cooling: 3 fan plus water cooling system
- Motors: 7 stepper motors.
- Housing: Extruded Aluminum
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -15°C - 40°C (5°F - 104°F)
- Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired..
- Gobo Size: Outer Diameter: 27.8mm, Inner Diameter: 22.5mm
- Dimensions: Please see below.
- Weight: 17.15 kgs (37.73 lbs)
- Warranty: One year limited warranty
- Model: BRL-EFX-Z300ST
- Color wheel: 6 interchangeable colors plus open
- Gobo wheel: 6 rotating glass star gobos plus open, indexing, variable rotation
- Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
- Zoom: Motorized 11° - 46° (Great range from narrow to wide)
- Focus: Motorized
- Prism: 4 facet prism wheel with 1 interchangeable prism, prism rotation and indexing
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, instant open and blackout
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image star projection
- Rotating and static images
- Color changer
- Motorized zoom
- Multi facet prism
- Dimming
- Strobing
- DMX 512
- Various control modes
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
TECHNICAL SPECIFICATIONS
- Power Supply: AC100V-260V, 50/60Hz
- Auto Switching Power Supply, internal power supply.
- Power Consumption: Maximum 400W
- Power Connection: Power In (3 pins) /Power Out (3 pins)
- Light Source: 300W High Power LED Engine, White Color
- Lumens: 39,000
- Color Temperature: 6500K
- LED Lifespan: >20,000 hours (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
- Projection Angles: 11°- 46°
- Focus:. Electronic linear focusing, each effect within 5 meters can be clearly adjusted; all patterns can achieve linear infinity zoom
- Zoom: Electronic
- DMX 512 control
- Data Connection: 3 pin DMX In/DMX Out
- DMX Channels: 10 DMX 512 channels
- Control Mode: Standard: DMX, Auto, Sound, Program, W-DMX (optional, please call.)
- Self configured auto programs: 30
- Display: Full Color 180° Reversible LCD
- Dimming: Smooth 0 – 100% electronic dimming
- Strobe: 0-25Hz variable speed, pulse and random strobe
- Prism: 4-facet circular rotating prism, independent control
- Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
- Rotating Gobo Wheel with 6 interchangeable glass gobos plus open. Index, shake and two directional rotation.
- Color Changer: 1 Color Wheel with 6 filters plus open, full and half color function, two directional rainbow effects.
- Thermal management system ensures long life of LEDs
- Cooling: 3 fan plus water cooling system
- Motors: 7 stepper motors.
- Housing: Extruded Aluminum
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -15°C - 40°C (5°F - 104°F)
- Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down).. The fast lock can fix the angle desired..
- Gobo Size: Outer Diameter: 27.8mm, Inner Diameter: 22.5mm
- Dimensions: Please see below.
- Weight: 17.15 kgs (37.73 lbs)
- Warranty: One year limited warranty
- Model: BRL-EFX-Z300ST
DYNAMIC EFFECTS
- Color wheel: 6 interchangeable colors plus open
- Gobo wheel: 6 rotating glass star gobos plus open, indexing, variable rotation
- Gobo animation wheel: Indexing, continuous rotation with variable angle, speed and direction
- Zoom: Motorized 11° - 46° (Great range from narrow to wide)
- Focus: Motorized
- Prism: 4 facet prism wheel with 1 interchangeable prism, prism rotation and indexing
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, instant open and blackout

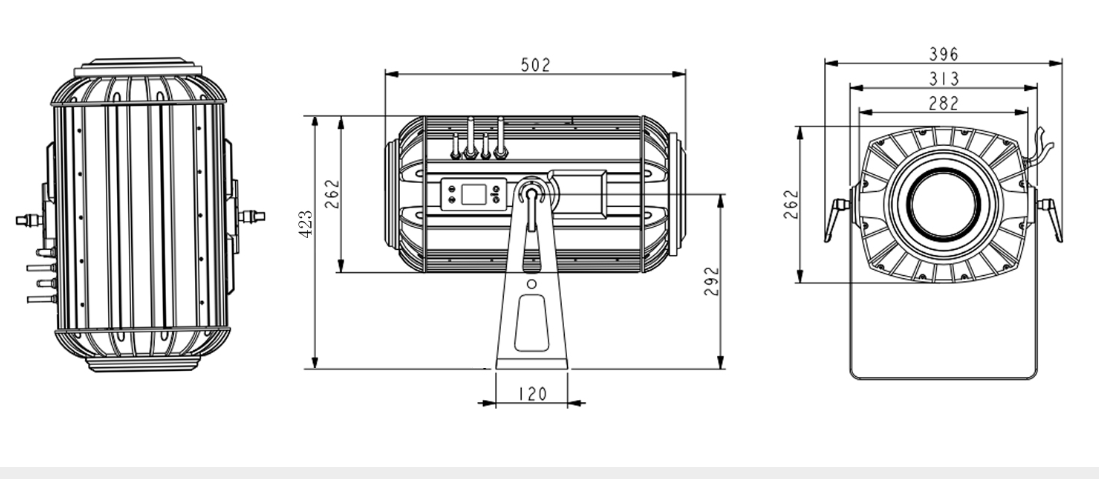

DIMENSIONS
Due to continuous improvements, specifications and prices may change without prior notice
