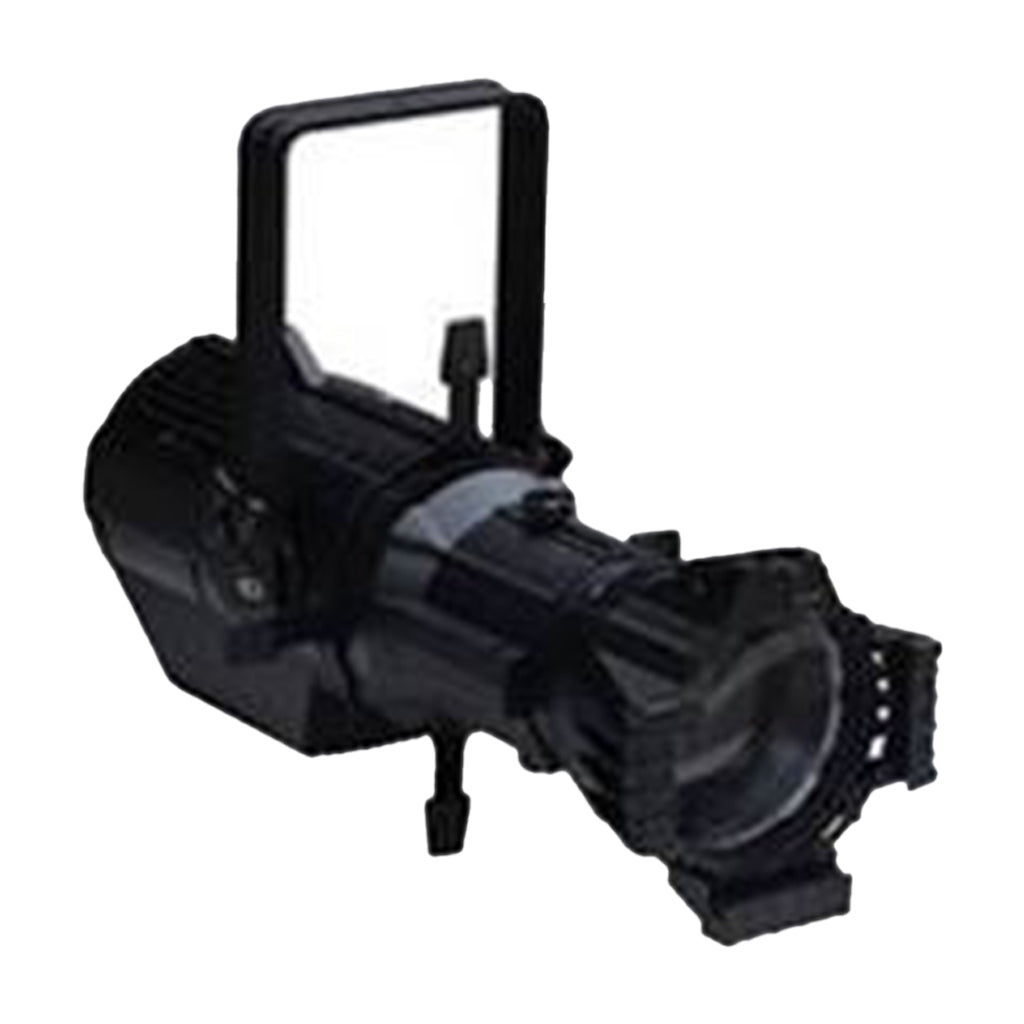

The RADIANT 200 is a newly developed high power LED image and framing projector.
It is driven by a 200W advance power LED COB white module and is equipped with high
quality optical system designed to yield maximum light output and high definition beam
producing impressive graphics which surpass the effects of fixtures in its class.
The RADIANT 200 rivals classic high power halogen and discharge projectors at much lower cost, power consumption weight and size. The RADIANT 200 is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- DMX 512
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- A variety of lenses to meet diverse projection requirements
- Enables you to create the look you want, and change it easily and quickly
- Clever cooling system
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
- Power Supply: AC90V-260V, 50/60Hz
- Power supply: Auto Switching Power Supply
- Power Consumption: Maximum 220W
- LEDs: COB 200W High Power LED, White Color
- Color Temperature: 3200K or 6500K
- Color Rendering Index(CRI): 3200K Ra>95; 6500K Ra>80%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Drive Current(mA): 6,200
- Lumens(Lm): 18,000
- Beam Angle: 19°, 26°, 36° ,50°. 10° available on special request at additional cost. Length and front lens 10° is different from the standard.
- Focus: Manually
- Lens: non-spherical glass
- Gobo Size: B size, Outer Diameter: 80mm, Inner Diameter: 70mm
- Control Mode: 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 3
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: Strobe speed from slow to fast
- CH3: DIM4
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs

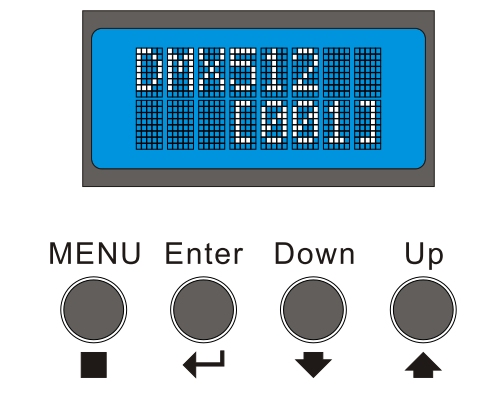

- Control Panel: Digital alphanumeric
- Cooling System: Entire housing as a heat sink, copper pipes and plus super silent fan

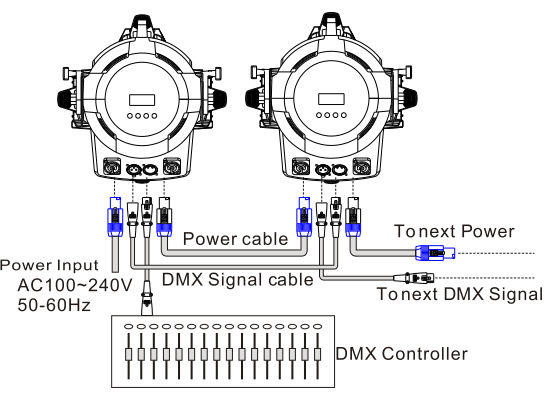

- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 4 fixtures
- Data Chain: up to 30 fixtures
- Housing: ABS plastic
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke, please see below.
- 4 framing shutter blades included
- Color filter frame included
- Gobo holder included
- Dimensions: L64.5 x H26 x W25cm (25.39” x 10.24” x 9.84”)
- Weight: 7.5kgs 16.5 lbs)
- Model: R-200
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- DMX 512
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- A variety of lenses to meet diverse projection requirements
- Enables you to create the look you want, and change it easily and quickly
- Clever cooling system
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
TECHNICAL SPECIFICATIONS
- Power Supply: AC90V-260V, 50/60Hz
- Power supply: Auto Switching Power Supply
- Power Consumption: Maximum 220W
- LEDs: COB 200W High Power LED, White Color
- Color Temperature: 3200K or 6500K
- Color Rendering Index(CRI): 3200K Ra>95; 6500K Ra>80%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Drive Current(mA): 6,200
- Lumens(Lm): 18,000
- Beam Angle: 19°, 26°, 36° ,50°. 10° available on special request at additional cost. Length and front lens 10° is different from the standard.
- Focus: Manually
- Lens: non-spherical glass
- Gobo Size: B size, Outer Diameter: 80mm, Inner Diameter: 70mm
- Control Mode: 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 3
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: Strobe speed from slow to fast
- CH3: DIM4
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs
- Control Panel: Digital alphanumeric
- Cooling System: Entire housing as a heat sink, copper pipes and plus super silent fan
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 4 fixtures
- Data Chain: up to 30 fixtures
- Housing: ABS plastic
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke, please see below.
- 4 framing shutter blades included
- Color filter frame included
- Gobo holder included
- Dimensions: L64.5 x H26 x W25cm (25.39” x 10.24” x 9.84”)
- Weight: 7.5kgs 16.5 lbs)
- Model: R-200

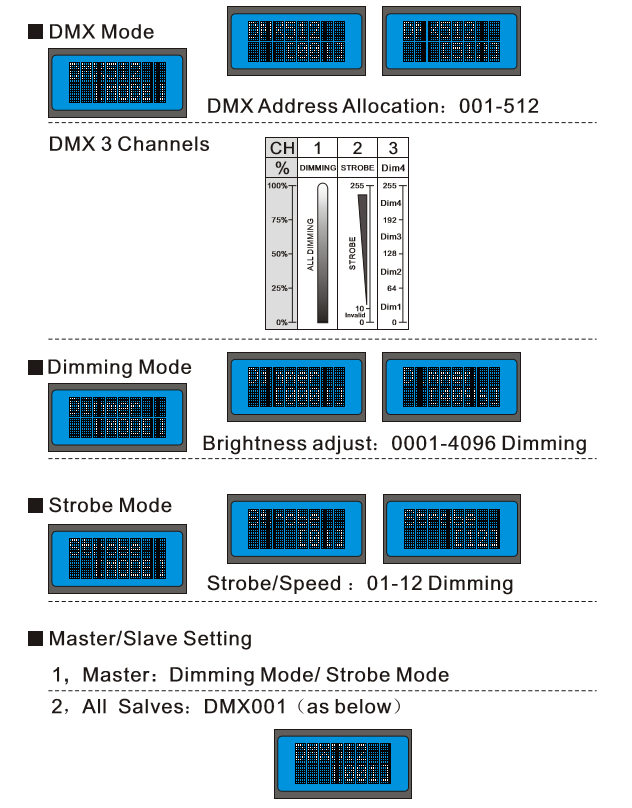

DMX CHANNELS

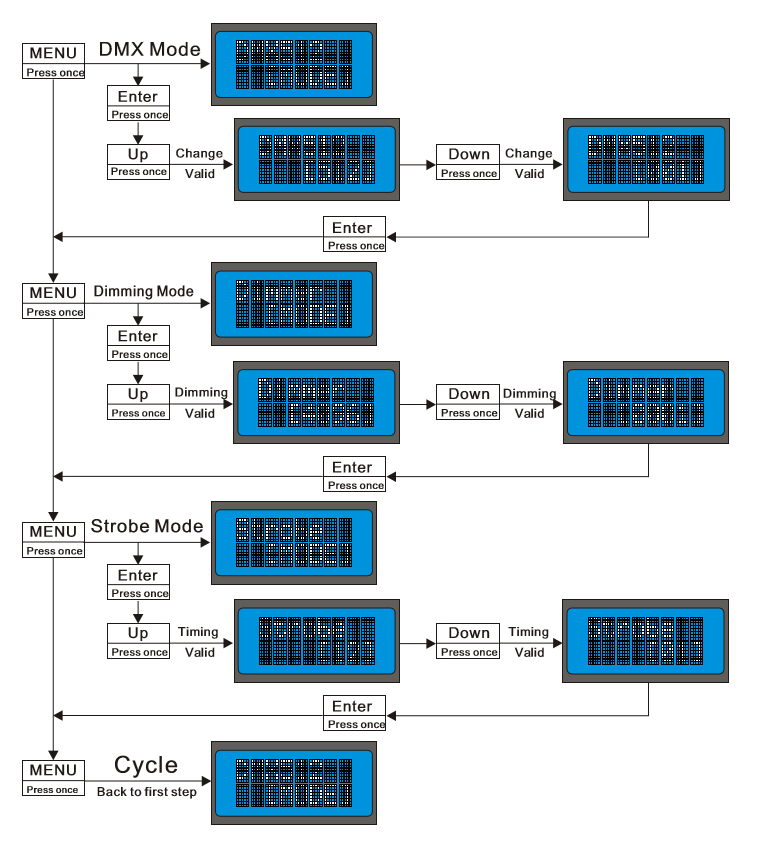

FUNCTIONS

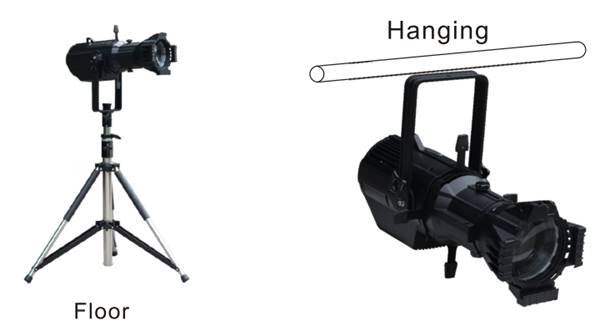

MOUNTING

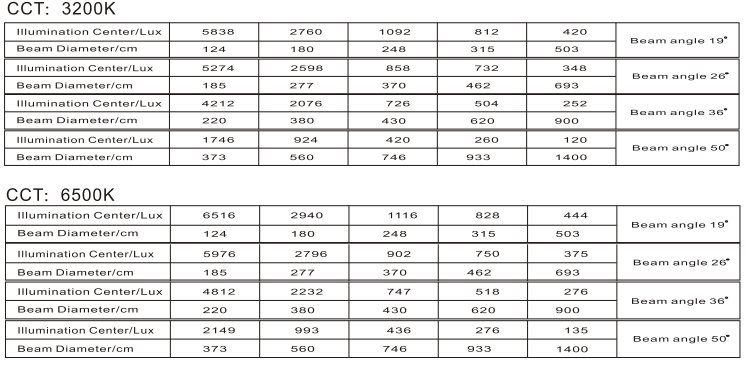

PHOTOMETRIC DATA
" alt="tab-img">
- Towers
- High Risers
- Power Plants
- Skyscrapers
- Stadiums
- Arenas
- Hotels
- Casinos
- Bridges
- Monuments

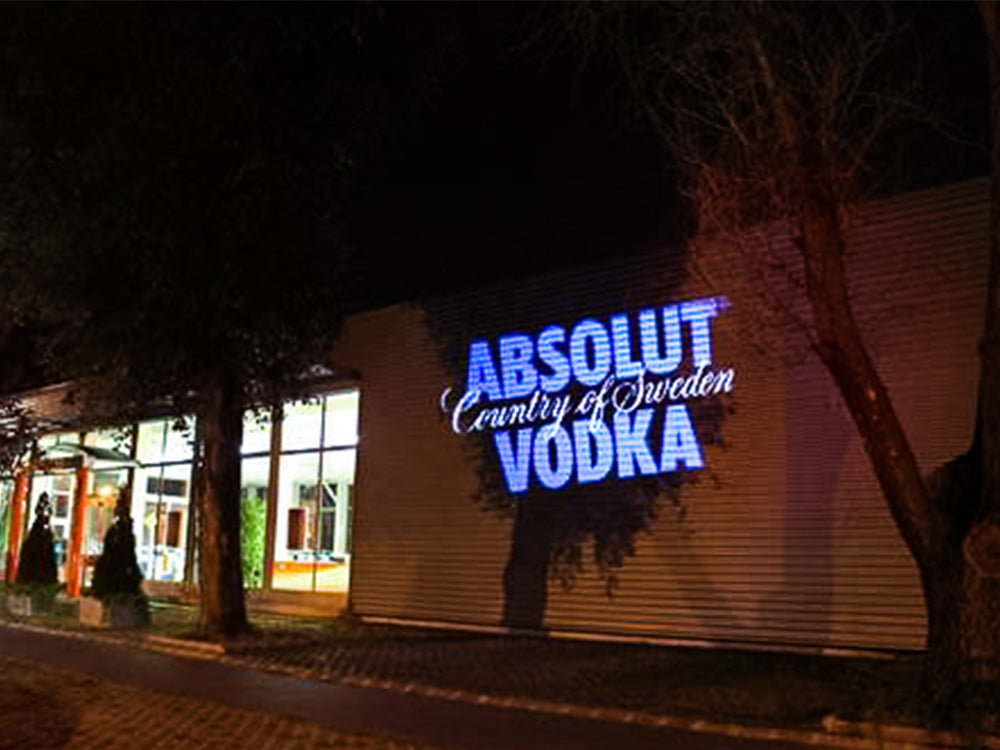

- Facades
- Buildings
- Amusement Rides
- Houses of Worship
- Large Retail Exteriors
- Piers
- Themed attractions
- Amusement Parks
- Trees
- Sports Facilities
- Borders
- Coastal Defense
- Prisons
- Law Enforcement
- Big Squares
- Hills
- Silos
- Commercial & Industrial Sites

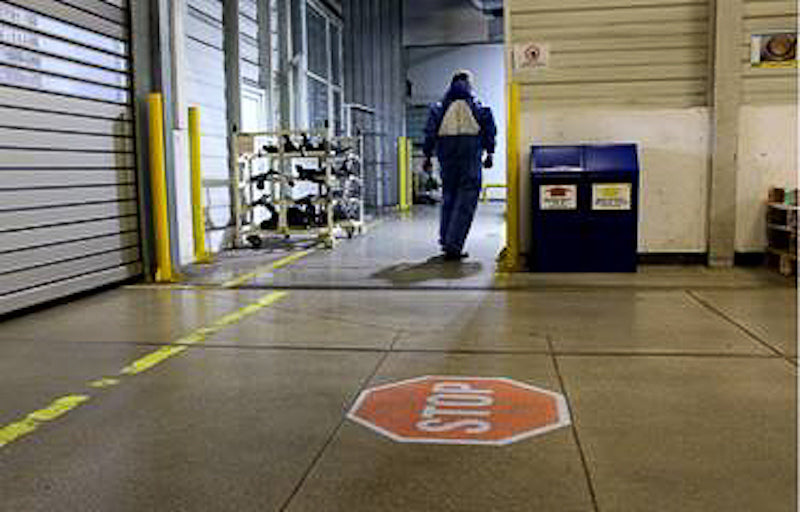

Industrial and business enterprises are increasingly aware of the opportunities and benefits brought by the projection of navigation, hazard and safety signs. Replacing painted safety labels or stickers because they wear off easily in heavy traffic, restoration is time consuming and its cost is high.
The RADIANT 200 is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.
The RADIANT 200 projectors can be connected to a motion sensor or timer, and if necessary the projected image can be replaced or repositioned.
Thanks to the DMX512 technology, the RADIANT 200 can be programmed, if desired, producing dynamic effects of dimming and flashing. Multiple projectors can be linked, daisy-chained and programmed.
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
