Product Description

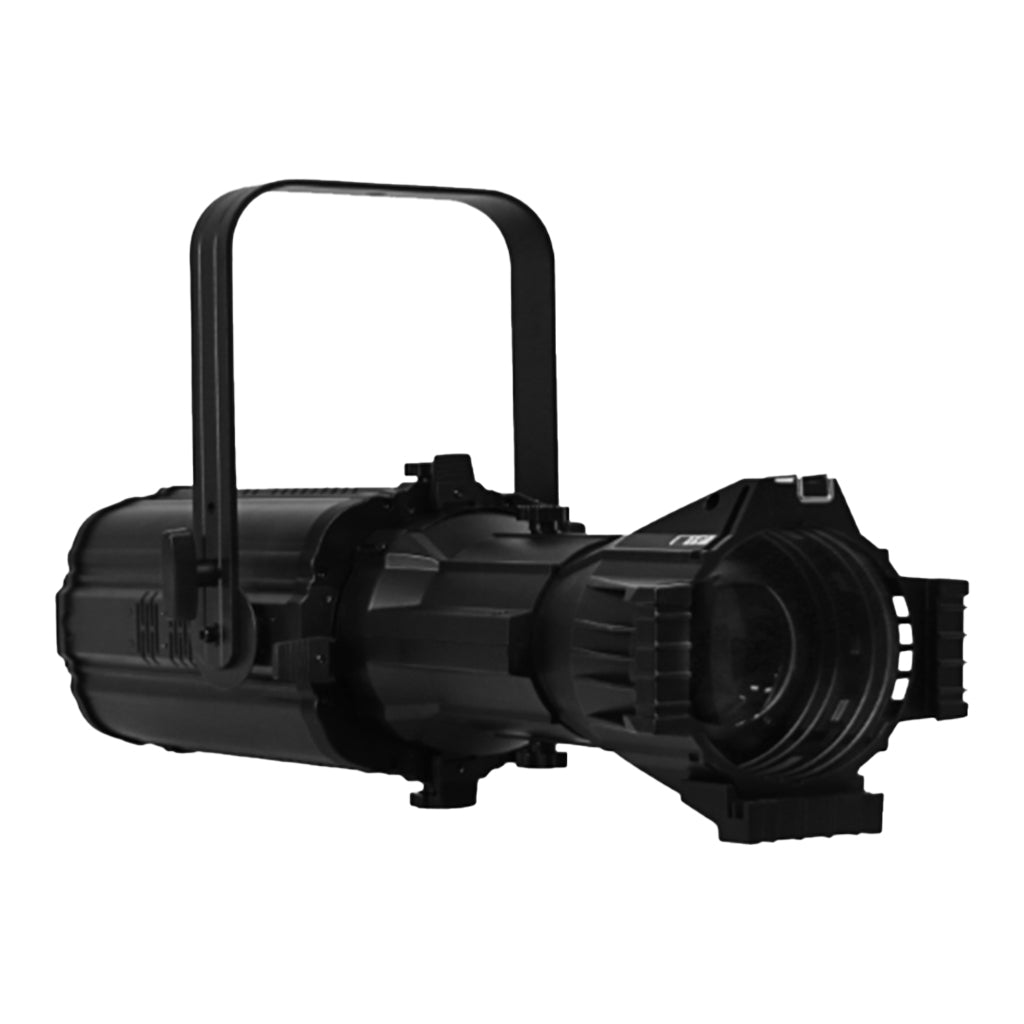

The RADIANT 400 is a newly developed high power LED image and framing projector. It is driven by a 400W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
The RADIANT 400 rivals classic high power halogen and discharge projectors at much lower cost, power consumption weight and size.
The RADIANT 400 is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Liquid Cooling System
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- DMX 512
- RDM
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- A variety of lenses to meet diverse projection requirements
- Enables you to create the look you want, and change it easily and quickly
- Clever cooling system
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
- Power Supply: AC90V-260V, 50/60Hz
- Power supply: Auto Switching Power Supply
- Power Consumption: Maximum 420W
- LEDs: COB 400W High Power LED, White Color
- Color Temperature: 3200K (standard) or 6500K (special order and additional cost)
- Color Rendering Index(CRI): 3200K Ra>95; 6500K Ra>80%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Lumens(Lm): 40,000
- Beam Angle: 19°, 26°, 36° ,50°. 10° available on special request at additional cost. Length and front lens 10° is different from the standard.
- Focus: Manually
- Lens: non-spherical glass
- Gobo Size: B size, Outer Diameter: 80mm, Inner Diameter: 70mm
- Control Mode: 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 4
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: DIM FINE
- CH3 Strobe speed from slow to fast
- CH4: DIM4
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs

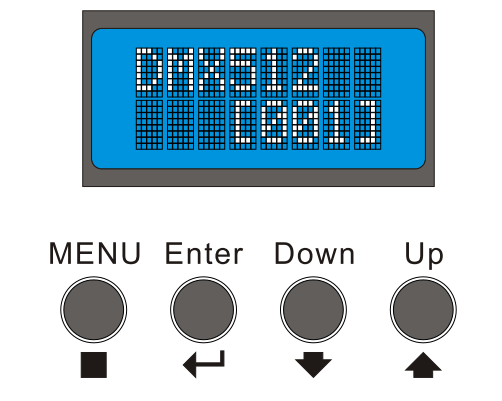

- Control Panel: Digital alphanumeric
- Cooling System: Liquid Cooling System
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 4 fixtures
- Data Chain: up to 10 fixtures
- Housing: ABS plastic
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)

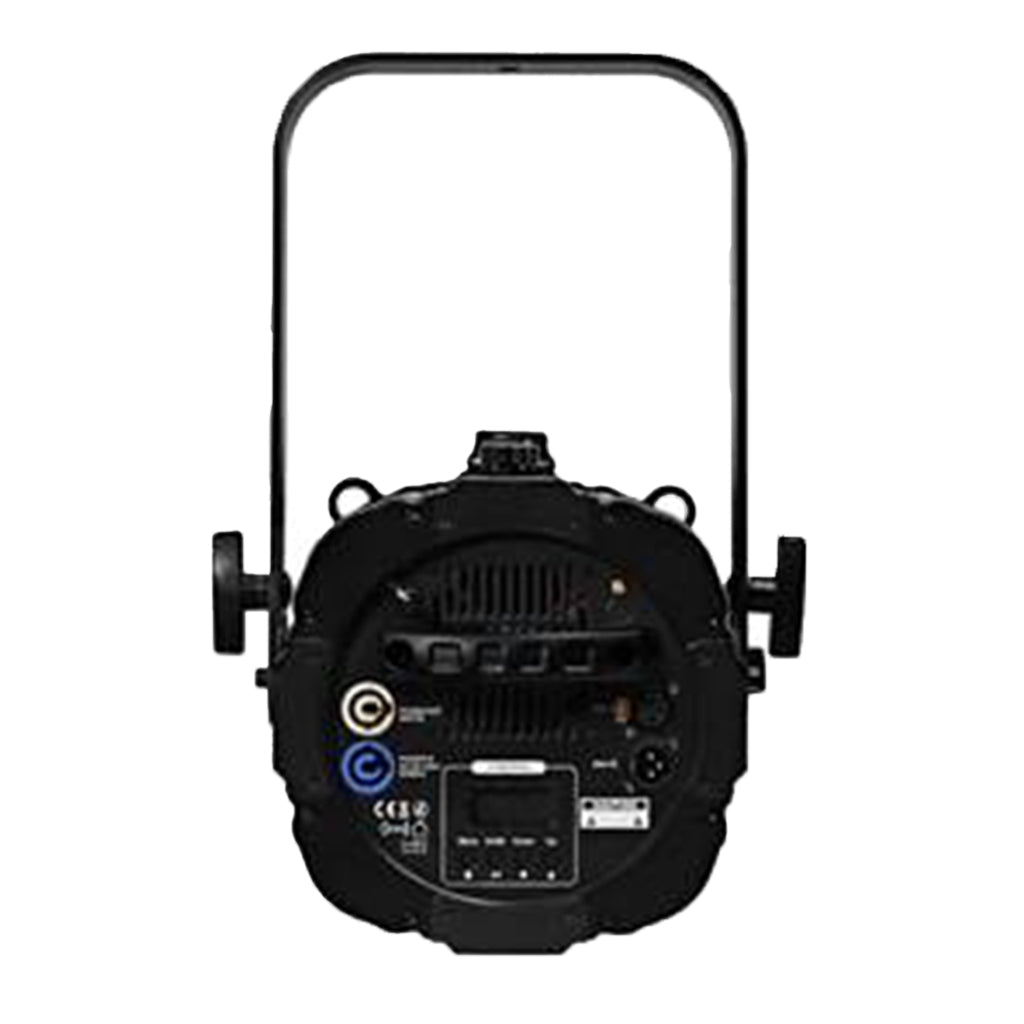

- Mounting: Yoke, please see below.
- 4 framing shutter blades included
- Color filter frame included
- Gobo holder included

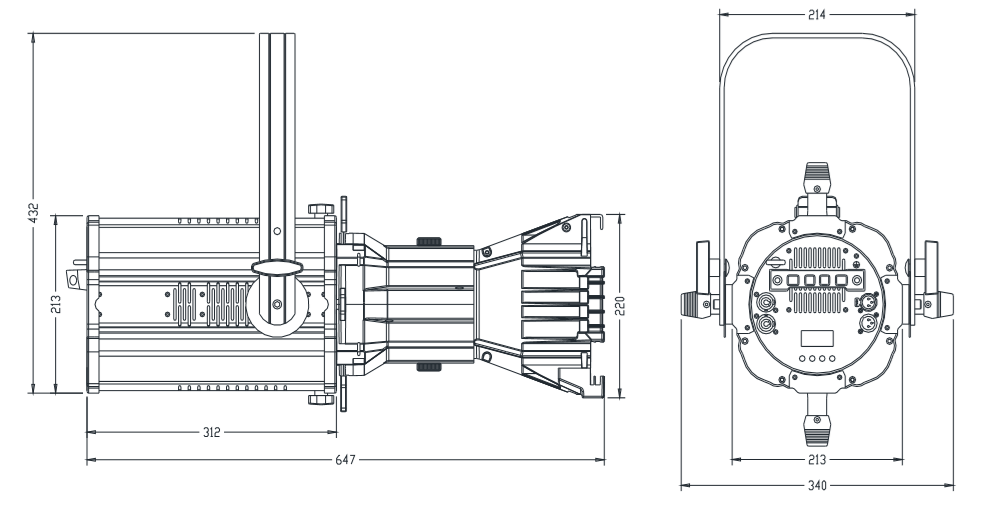

- Dimensions: L64.5 x H34x W21.3cm (25.39” x 13.39” x 8.39”)
- Weight: 10kgs (22 lbs)
- Model: R-400
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Liquid Cooling System
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- DMX 512
- RDM
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- A variety of lenses to meet diverse projection requirements
- Enables you to create the look you want, and change it easily and quickly
- Clever cooling system
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
TECHNICAL SPECIFICATIONS
- Power Supply: AC90V-260V, 50/60Hz
- Power supply: Auto Switching Power Supply
- Power Consumption: Maximum 420W
- LEDs: COB 400W High Power LED, White Color
- Color Temperature: 3200K (standard) or 6500K (special order and additional cost)
- Color Rendering Index(CRI): 3200K Ra>95; 6500K Ra>80%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Lumens(Lm): 40,000
- Beam Angle: 19°, 26°, 36° ,50°. 10° available on special request at additional cost. Length and front lens 10° is different from the standard.
- Focus: Manually
- Lens: non-spherical glass
- Gobo Size: B size, Outer Diameter: 80mm, Inner Diameter: 70mm
- Control Mode: 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 4
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: DIM FINE
- CH3 Strobe speed from slow to fast
- CH4: DIM4
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs
- Control Panel: Digital alphanumeric
- Cooling System: Liquid Cooling System
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 4 fixtures
- Data Chain: up to 10 fixtures
- Housing: ABS plastic
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke, please see below.
- 4 framing shutter blades included
- Color filter frame included
- Gobo holder included
- Dimensions: L64.5 x H34x W21.3cm (25.39” x 13.39” x 8.39”)
- Weight: 10kgs (22 lbs)
- Model: R-400
DMX CHANNELS
PHOTOMETRIC DATA
More Details

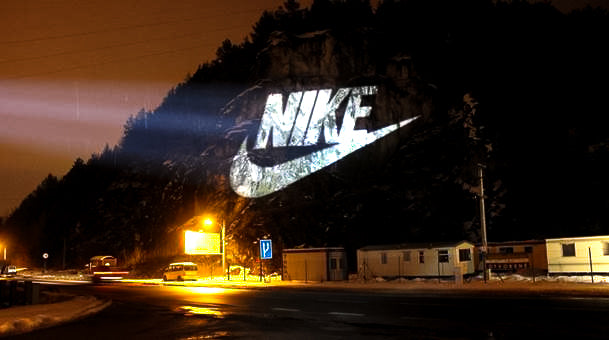

Marketing Examples

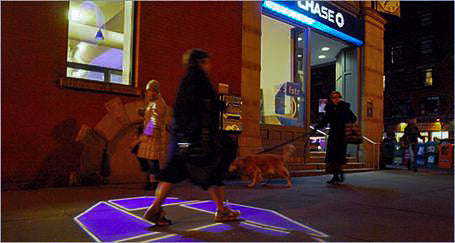

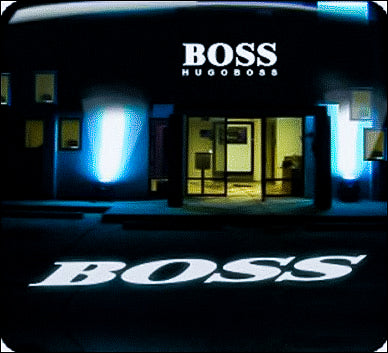

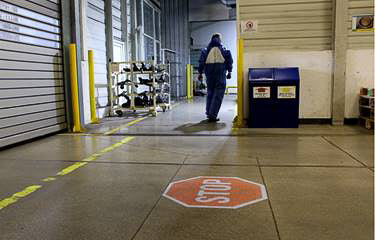

The RADIANT 400 is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.
The RADIANT 400 projectors can be connected to a motion sensor or timer, and if necessary the projected image can be replaced or repositioned.
Thanks to the DMX512 technology and RDM technology, the RADIANT 400 can be programmed, if desired, producing dynamic effects of dimming and flashing.

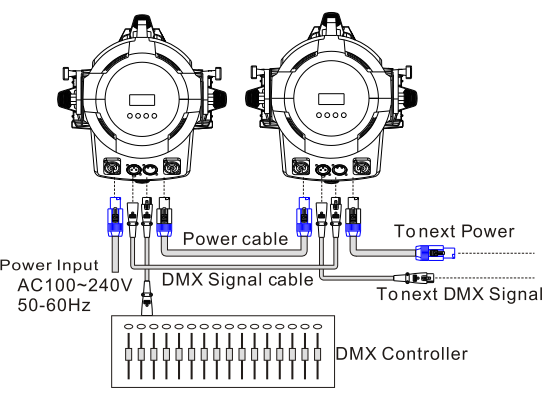

Multiple projectors can be linked, daisy-chained and programmed.
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
