Product Description

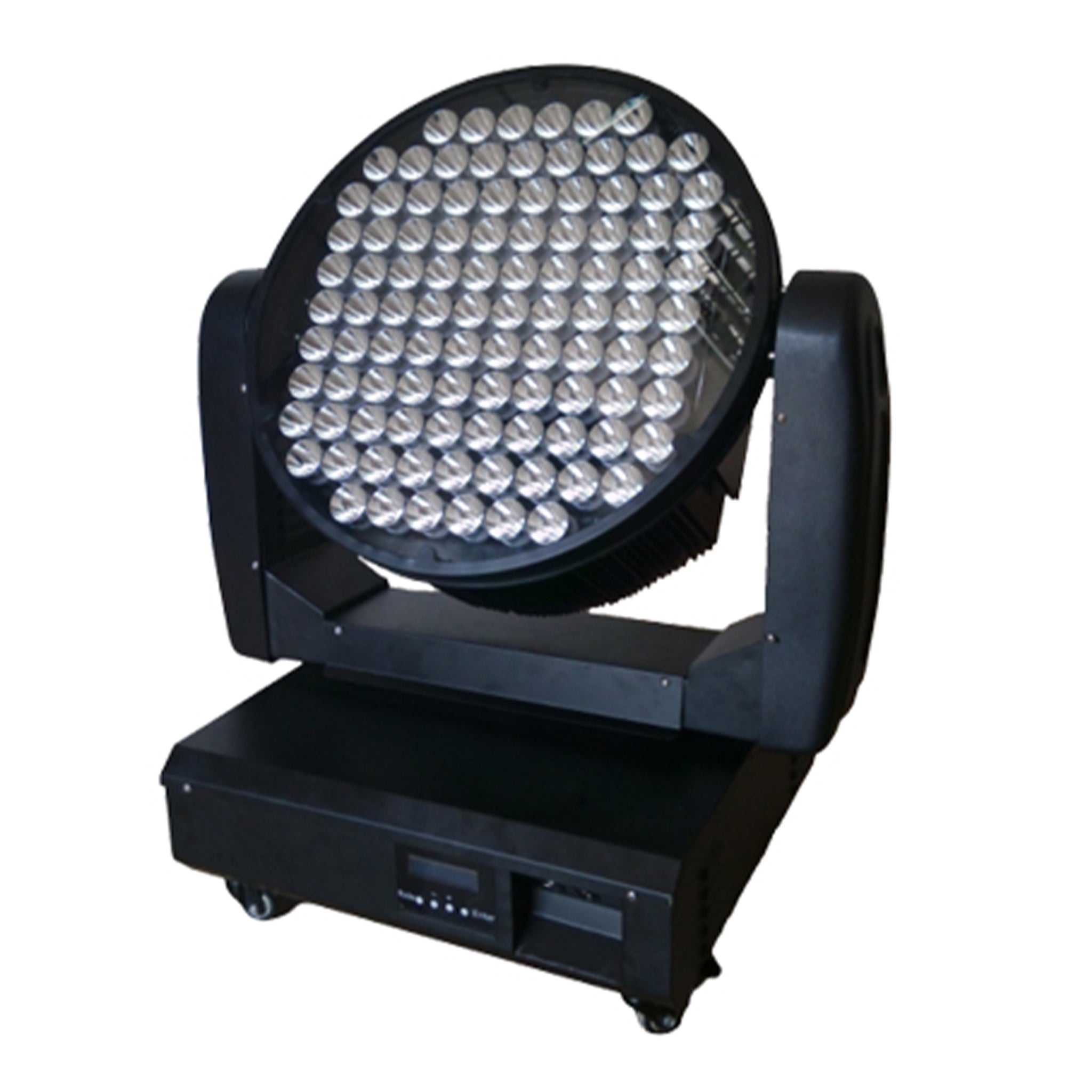

Aptly named, the MEGA TITAN ZAP is a newly developed high power SSL automated moving head searchlight using 1.5KW CREE LED chip and very narrow beam optics producing a white single moving beam. On-board or remote DMX 512 signal gives direct access to all functions including electronic control over pan, tilt, speed, dimmer, strobe, chasing and blackout effects.
The base unit features brake-locking wheels and screw jacks for leveling and stabilizing the unit and a special mounting plate for permanent applications.
Thanks to the high IP ratings, the MEGA TITAN ZAP is ideal for outdoors for permanent, semi-permanent and temporary applications in entertainment, architectural, display, industrial and commercial installations.
- This very powerful LED projector is targeted to provide the best long throw illumination effect for the next generation of SSL exterior architectural lighting applications
- Automated moving head technology enables smooth pan and tilt movement
- Thanks to the very narrow brilliant beam it can be seen from long distances
- Rivals legacy xenon searchlights on power consumption, light efficiency, lamp life, cost, durability, longevity and reliability
- With proprietary thermal management system and optics design, it offers superior performance for outdoor lighting areas
- Uses CREE high power LED as lighting source, with high brightness, high color temperature, high thermal conductivity, good heat-radiation, virtually minimal light decay, pure light, no ghosting, stable performance and quality advantages
- Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power
- Light weight for safe use and installation
- Eco-friendly and energy saving, dust-proof, no radiation and emitting heat, no mercury, lead and other pollution elements
- High color rendering index to show the physical color rendering more real
- Powered by constant current and voltage
- Using a special surface treatment process
- New design with emphasis on appearance
- Virtually no moving parts result in higher reliability and durability
- Simple installation
- Easy mounting and positioning
- Wide range of applications
- The driver/power supply is separated from the head with light source results in superior performance, reliability and durability
- Special for outdoor use
- High Brightness
- Energy saving
- Long lifetime
- Compact size
- Power supply：220V - 240V, 50 - 60Hz, 7.5A, others available too.
- Power consumption (Max): 1650w
- Light source: CREE WHITE LED
- Brightness: >150,000 lumens
- Beam Angle: VNB 3° - 6°
- Lamp Life Span: >60,000 hours
- Control Mode: DMX512, Master/Slave and self-running automatic
- DMX Channels: Please see below
- Display: LCD (menu)
- Strobe: 4 – 15 Hz
- Dimming: Electronic 0-100%
- Pan: 360°:
- Tilt: 240°
- IP rating: IP55
- Housing: Extruded aluminum head and heat-resistant plastic from patented waterproof and cool-down structure
- Mounting: Universal
- Cooling system: finned head and high efficiency silent fans
- Working Temperature : -40℃ - 50℃ (-40°F – 122°F)
- Dimensions: 720 X 550 X 660mm (28.35” X 21.65” X 26”)
- Net Weight: 38 kgs (84 lbs)
- Gross Weight: 66kg (145 lbs)
- Model: ZAP-3542
FEATURES
- This very powerful LED projector is targeted to provide the best long throw illumination effect for the next generation of SSL exterior architectural lighting applications
- Automated moving head technology enables smooth pan and tilt movement
- Thanks to the very narrow brilliant beam it can be seen from long distances
- Rivals legacy xenon searchlights on power consumption, light efficiency, lamp life, cost, durability, longevity and reliability
- With proprietary thermal management system and optics design, it offers superior performance for outdoor lighting areas
- Uses CREE high power LED as lighting source, with high brightness, high color temperature, high thermal conductivity, good heat-radiation, virtually minimal light decay, pure light, no ghosting, stable performance and quality advantages
- Unique thermal management design low LED junction temperature effectively, ensure the lifespan of the light source and power
- Light weight for safe use and installation
- Eco-friendly and energy saving, dust-proof, no radiation and emitting heat, no mercury, lead and other pollution elements
- High color rendering index to show the physical color rendering more real
- Powered by constant current and voltage
- Using a special surface treatment process
- New design with emphasis on appearance
- Virtually no moving parts result in higher reliability and durability
- Simple installation
- Easy mounting and positioning
- Wide range of applications
- The driver/power supply is separated from the head with light source results in superior performance, reliability and durability
- Special for outdoor use
- High Brightness
- Energy saving
- Long lifetime
- Compact size
TECHNICAL SPECIFICATIONS
- Power supply：220V - 240V, 50 - 60Hz, 7.5A, others available too.
- Power consumption (Max): 1650w
- Light source: CREE WHITE LED
- Brightness: >150,000 lumens
- Beam Angle: VNB 3° - 6°
- Lamp Life Span: >60,000 hours
- Control Mode: DMX512, Master/Slave and self-running automatic
- DMX Channels: Please see below
- Display: LCD (menu)
- Strobe: 4 – 15 Hz
- Dimming: Electronic 0-100%
- Pan: 360°:
- Tilt: 240°
- IP rating: IP55
- Housing: Extruded aluminum head and heat-resistant plastic from patented waterproof and cool-down structure
- Mounting: Universal
- Cooling system: finned head and high efficiency silent fans
- Working Temperature : -40℃ - 50℃ (-40°F – 122°F)

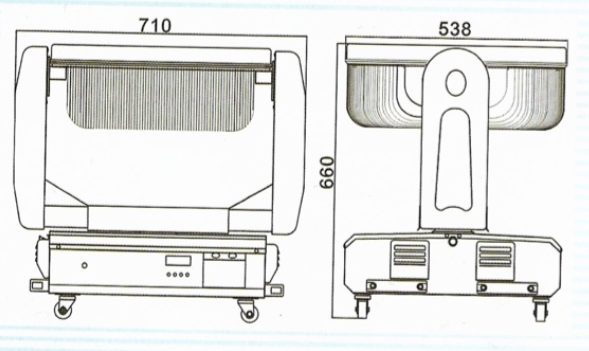

- Dimensions: 720 X 550 X 660mm (28.35” X 21.65” X 26”)
- Net Weight: 38 kgs (84 lbs)
- Gross Weight: 66kg (145 lbs)
- Model: ZAP-3542
DMX CHANNELS
More Details
Applications
- Towers
- High Risers
- Power Plants
- Skyscrapers
- Stadiums
- Arenas
- Hotels
- Casinos
- Bridges
- Monuments
- Facades
- Buildings
- Amusement Rides
- Houses of Worship
- Large Retail Exteriors
- Piers
- Themed attractions
- Amusement Parks
- Trees
- Sports Facilities
- Borders
- Coastal Defense
- Prisons
- Law Enforcement
- Big Squares
- Hills
- Silos
- Commercial & Industrial Sites

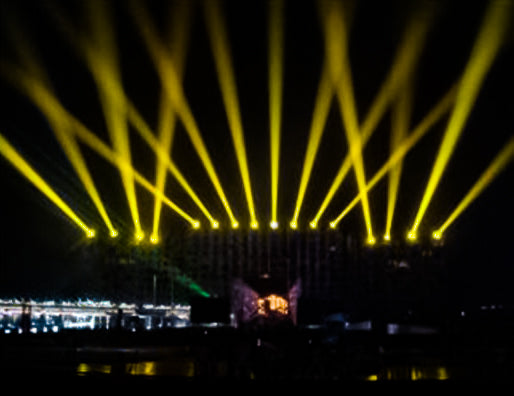

Marketing Examples
- When you want to come up with something more dramatic
- When you want to get a “wow factor”
- Create new looks as if wrapped up in a geometric pattern of glittering, powerful beams of light moving in perfect coordination
- Programming synchronized and non-synchronized chasing patterns via DMX makes the light beams even more dramatic
- Performance, Reliability and Durability are great
- Environmentally friendly
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
