Product Description
The BRILLIANT EFX Z600 is a newly developed Super Power LED multi-image multi-effect (rotating images, color changer, zoom, prism, dimming, strobe, frost diffused) special effects projector designed for long throw outdoor use.
All the functions are controlled by a DMX 512 allowing maximum creativity and flexibility.
It is driven by a 600W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
The BRILLIANT EFX Z600 rivals classic high power discharge projectors at much lower cost, power consumption and size.
The BRILLIANT EFX Z600 is easy to install and operate and is light weight housed in a stylish and functional housing.
- Color wheel: 6 interchangeable colors plus open
- Gobo wheels: Two 6 interchangeable rotating gobos plus open, indexing, variable rotation. Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Zoom: Motorized 9° - 41° (Great range from narrow to wide)
- Focus: Motorized
- Prism: 4 facet circular rotating prism
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, 0-25Hz variable speed, pulse and random strobe, instant open and blackout
- Frost Effect: Diffusing the color
- Power Supply: AC100V-260V, 50/60Hz
- Auto Switching Power Supply, internal power supply.
- Power Consumption: Maximum 750W
- Power Connection: Power In (3 pins) /Power Out (3 pins)
- Light Source: 600W High Power LED Engine, White Color
- Lumens: 60,000
- Color Temperature: 6600K
- LED Lifespan: >20,000 hours. (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
- Projection Angles: Zoom 9° - 41°
- Focus:. Electronic motorized linear focusing.
- Zoom: Electronic motorized
- DMX 512 control
- Data Connection: 3 pin DMX In/DMX Out
- DMX Channels: 11 DMX 512 channels
- Control Mode: DMX, Auto, Sound, Program, Manual
- Self configured auto programs: 30
- Display: Full Color 180° Reversible LCD
- Dimming: Smooth 0 – 100% electronic dimming
- Strobe: 0-25Hz variable speed, pulse and random strobe
- Prism: 4-facet circular rotating prism, independent control
- Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
- Rotating Gobos Wheel: 1 rotating gobo wheel with 6 interchangeable glass gobos plus open, Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Color Changer: 6 dichroic colors plus open, Index / Bi-directional rotating rainbow effect
- Frost Effect: Diffuser
- Thermal management system ensures long life of LEDs and other components
- Cooling System: The heat pipe and advanced cooling system make the LED chip cool all the time which maximize the chip illuminance and increases life longevity.
- Fans: 8
- Motors: 10 stepper motors
- Housing: Extruded Aluminum with high strength, surface blasting oxidation treatment
- Housing Color: Black and gray. Customized color is available.
- IP Rating: IP55
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -25°C - 40°C (-13°F - 104°F)
- Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down). The fast lock can fix the angle desired.
- Gobo Size: Outer Diameter: 25mm, Inner Diameter: 17mm
- Dimensions: Please see below.
- Weight: 23kgs (50.6 lbs)
- Warranty: One year limited warranty
- Model: BRL-EFX-Z600
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image projection
- Rotating and static images
- Color changer
- Frost effect
- Motorized focus
- Motorized zoom
- Motorized multi facet prism
- Dimming
- Strobing
- DMX 512
- Various control modes
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- CH1 DIMMER
- CH2 STROBE
- CH3 COLOR WHEEL
- CH4 GOBO WHEEL
- CH5 GOBO ROTATION
- CH6 PRISM
- CH7 PRISM ROTATION
- CH8 FROST
- CH9 FOCUS
- CH10 ZOOM
- CH11 RESET
The projector features 4 freely control modes including DMX, auto, sound, program and manual. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.
DYNAMIC EFFECTS
- Color wheel: 6 interchangeable colors plus open
- Gobo wheels: Two 6 interchangeable rotating gobos plus open, indexing, variable rotation. Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Zoom: Motorized 9° - 41° (Great range from narrow to wide)
- Focus: Motorized
- Prism: 4 facet circular rotating prism
- Dimming: Electronic, constantly variable 0-100%, 16-bit control
- Shutter: Electronic, strobe and pulse effects, 0-25Hz variable speed, pulse and random strobe, instant open and blackout
- Frost Effect: Diffusing the color
TECHNICAL SPECIFICATIONS
- Power Supply: AC100V-260V, 50/60Hz
- Auto Switching Power Supply, internal power supply.
- Power Consumption: Maximum 750W
- Power Connection: Power In (3 pins) /Power Out (3 pins)
- Light Source: 600W High Power LED Engine, White Color
- Lumens: 60,000
- Color Temperature: 6600K
- LED Lifespan: >20,000 hours. (20,000 hours’ lamp life equals 8 hours’ daily use for 7 years. And even then, it will still produce 70% of its original output, which makes it highly superior to any traditional discharge image projector).
- Projection Angles: Zoom 9° - 41°
- Focus:. Electronic motorized linear focusing.
- Zoom: Electronic motorized
- DMX 512 control
- Data Connection: 3 pin DMX In/DMX Out
- DMX Channels: 11 DMX 512 channels
- Control Mode: DMX, Auto, Sound, Program, Manual
- Self configured auto programs: 30
- Display: Full Color 180° Reversible LCD
- Dimming: Smooth 0 – 100% electronic dimming
- Strobe: 0-25Hz variable speed, pulse and random strobe
- Prism: 4-facet circular rotating prism, independent control
- Optical System: High-precision, large-aperture optical glass optics are used to ensure ultra-high brightness light output.
- Rotating Gobos Wheel: 1 rotating gobo wheel with 6 interchangeable glass gobos plus open, Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect
- Color Changer: 6 dichroic colors plus open, Index / Bi-directional rotating rainbow effect
- Frost Effect: Diffuser
- Thermal management system ensures long life of LEDs and other components
- Cooling System: The heat pipe and advanced cooling system make the LED chip cool all the time which maximize the chip illuminance and increases life longevity.
- Fans: 8
- Motors: 10 stepper motors
- Housing: Extruded Aluminum with high strength, surface blasting oxidation treatment
- Housing Color: Black and gray. Customized color is available.
- IP Rating: IP55
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -25°C - 40°C (-13°F - 104°F)
- Mounting: Wide base. the bracket is stable and makes it freely to adjust angle on the tilt (up and down). The fast lock can fix the angle desired.
- Gobo Size: Outer Diameter: 25mm, Inner Diameter: 17mm
- Dimensions: Please see below.
- Weight: 23kgs (50.6 lbs)
- Warranty: One year limited warranty
- Model: BRL-EFX-Z600
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image projection
- Rotating and static images
- Color changer
- Frost effect
- Motorized focus
- Motorized zoom
- Motorized multi facet prism
- Dimming
- Strobing
- DMX 512
- Various control modes
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free

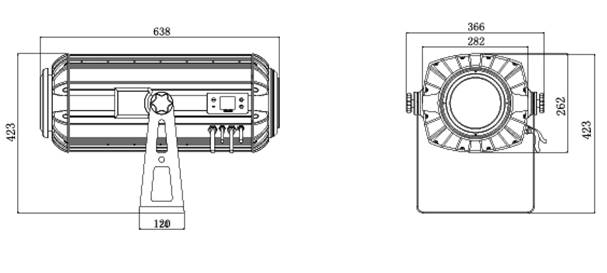

DIMENSIONS
DMX CHANNELS
- CH1 DIMMER
- CH2 STROBE
- CH3 COLOR WHEEL
- CH4 GOBO WHEEL
- CH5 GOBO ROTATION
- CH6 PRISM
- CH7 PRISM ROTATION
- CH8 FROST
- CH9 FOCUS
- CH10 ZOOM
- CH11 RESET
CONTROL
The projector features 4 freely control modes including DMX, auto, sound, program and manual. There are 30 self-configured automatic programs for users’ convenient usage. Users can configure automatic program freely via setting the function value on the LCD display of the advertising logo projector, instead of configuring program by controller.
More Details
Applications
· Outdoors/Indoors · High Risers · City Beautification · Water Themes · Facades · Roofs · Advertising · Banks · Promotional Campaigns · Shops · Department Stores · New Product Launch · New Service Introduction · Mountains · Nightclubs · Restaurants · Movie Theaters · Theatres · Signs · Supermarkets · Car Dealerships · Arenas · Hotels · Casinos · Studios · Houses of Worship · High End Residential · Amusement/Theme Parks · Hills · Museums · Events · Trade Shows · Entertainment Facilities · Concerts · Signs · Billboards · Exhibitions· Parking Garage · Displays & Exhibits · Radio & TV Stations · Sports Facilities · And much more
Marketing Examples
Due to continuous improvements, specifications and prices may change without prior notice
