Aptly name, the XENON MEGA STAR is a series of a single beam mega power automated moving head searchlight ranging from 2500W to 10000W.
Using a flicker free powerful 2500w, 4000w, 5000w, 7000w and 10000w xenon lamp and a glass reflector coated with titanium and silicon produce an extraordinary light output with a very narrow beam.
A antioxidant reinforced aluminum and a galvanized steel body combined with electrostatic spray technology design results in high firmness, lightweight, heat-resistant, user-friendly, safe, high efficient, reliable and streamlined appearance.
On board or remote DMX 512 signal gives direct access to all functions including electronic control over pan and tilt movement dimmer, strobe, standby and blackout effects.
The fixture can be remotely turned on/off via one of the DMX channels.
The base unit features brake-locking wheels and screw jacks for leveling and stabilizing the unit and a special mounting plate for permanent applications.
Transit locks are provided for pan and tilt movement.
With better waterproof performance and newly developed dust proof system the XENON MEGA STAR offers a longer life time in harsh outdoor environments.
The housing is weatherproofed to a certified IP55 rating.
16 BIT high resolution control over stepper motors and latest technology optical sensors ensure the highest precision on both pan and tilt movement.
Multiple units can be synchronized also without an external DMX control desk and demo programs are available for stand-alone operation.
The outstanding XENON MEGA STAR has huge creative possibilities with live event use.
This wide range of capabilities makes the XENON MEGA STAR ideal for rental companies, as well as for fixed installations in large scale concepts.
XENON MEGA STAR can be used for permanent, semi-permanent and temporary applications in entertainment, architectural, military, law enforcement and commercial installations.
- POWER: 50-60HZ, 220V/380V, 13Z-23A 2800W, 50-60 HZ 220V/10A (others available) 4500W, 50-60 HZ 220V/18A (others available) 5500W, 50-60 HZ 220V/26A (others available) 7500W, 50-60 HZ 220V/36A (others available) 10500W 50-60 HZ 380V/3X16A (others available)
- LIGHT SOURCE: 2500W, 4000W, 5000W, 7000W, 10000W xenon lamp, 500-1000 hours
- LUMENS: 2500W: 110,000 4000W: 155,000 5000W: 250,000 7000W: 360,000 10000W: 560,000
- CONTROL MODES: DMX 512, AUTO, MASTER/SLAVE
- DMX: 8 channels (Please see below)
- DISPLAY: LCD for menu generation (Please see below)
- PAN: 360°
- TILT: 210°
- ZOOM: 3° to 22°, manually adjustable
- COLOR OF LIGHT: White (Red, Green, Blue are optional)
- REFLECTOR: Glass reflector coated with titanium and silicon
- BEAM ANGLE: 3° to 22°, manually adjustable
- DIMMER: Linear 0-100%
- BLACK-OUT: Instant access
- STROBE: Electronic
- VISIBILITY DISTANCE: Visibility Distance: depending on atmospheric, topographic and ambient lighting levels and depending on model from 2.5kms (1.56 miles) to 8kms (5 miles) 4000W: 2 - 3.2KM (1.25 - 2 miles) 5000W: 2.5 - 4KM (1.375 – 2.5 miles) 7000W: 3.5 – 5.6KM (2.19 – 3.5 miles) 10000W: 5 - 8KM (3.125 – 5 miles)
- IP RATING: IP 55 http://articulight.com/pdf/IP_RATINGS.pdf
- DIMENSIONS: 2500W: 745 X 710 X 1195 MM (29.33 x 27.95 x 47 inch) 4000W: 745 X 710 X 1195 MM (29.33 x 27.95 x 47 inch) 5000W: 776 X 710 X 1258 MM (30.55 x 27.95 x 49.53 inch) 7000W: 800 X 710 X 1258 MM (31.50 x 27.95 x 49.53 inch) 10000W: 815 X 710 X 1258 MM (32 x 27.95 x 47 inch)
- GROSS DIMENSIONS WITH FLIGHTCASE: 740 X 780 X 1520 mm
- NET WEIGHT: 2500W: 60KG (132 lbs.) 4000W: 82KG (180 lbs.) 5000W: 84KG (185 lbs.) 7000W: 86KG (190 lbs.) 10000W:100KG (220 lbs.)
- HOUSING: Aluminum, steel and plastic components carefully selected for each section for durability, reliability and performance.
- HEAT MANAGEMENT SYSTEM: Air cooling with fans: both at the head and at the base.
- WORKING TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- AMBIENT TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- CARRYING HANDLES: 4 for ease of transportation
- TRANSPORT WHEELS: 4 with lock mechanism
- MOUNTING PLATE: 1, positioned at the base for permanent installation
- MODELS: 2500W: XMS-2.5KW 4000W: XMS-4KW 5000W: XMS-5KW 7000W: XMS-7KW 10000W: XMS-10KW
TECHNICAL SPECIFICATIONS
- POWER: 50-60HZ, 220V/380V, 13Z-23A 2800W, 50-60 HZ 220V/10A (others available) 4500W, 50-60 HZ 220V/18A (others available) 5500W, 50-60 HZ 220V/26A (others available) 7500W, 50-60 HZ 220V/36A (others available) 10500W 50-60 HZ 380V/3X16A (others available)
- LIGHT SOURCE: 2500W, 4000W, 5000W, 7000W, 10000W xenon lamp, 500-1000 hours
- LUMENS: 2500W: 110,000 4000W: 155,000 5000W: 250,000 7000W: 360,000 10000W: 560,000
- CONTROL MODES: DMX 512, AUTO, MASTER/SLAVE
- DMX: 8 channels (Please see below)
- DISPLAY: LCD for menu generation (Please see below)
- PAN: 360°
- TILT: 210°
- ZOOM: 3° to 22°, manually adjustable
- COLOR OF LIGHT: White (Red, Green, Blue are optional)
- REFLECTOR: Glass reflector coated with titanium and silicon
- BEAM ANGLE: 3° to 22°, manually adjustable
- DIMMER: Linear 0-100%
- BLACK-OUT: Instant access
- STROBE: Electronic
TECHNICAL SPECIFICATIONS 2
- VISIBILITY DISTANCE: Visibility Distance: depending on atmospheric, topographic and ambient lighting levels and depending on model from 2.5kms (1.56 miles) to 8kms (5 miles) 4000W: 2 - 3.2KM (1.25 - 2 miles) 5000W: 2.5 - 4KM (1.375 – 2.5 miles) 7000W: 3.5 – 5.6KM (2.19 – 3.5 miles) 10000W: 5 - 8KM (3.125 – 5 miles)
- IP RATING: IP 55 http://articulight.com/pdf/IP_RATINGS.pdf
- DIMENSIONS: 2500W: 745 X 710 X 1195 MM (29.33 x 27.95 x 47 inch) 4000W: 745 X 710 X 1195 MM (29.33 x 27.95 x 47 inch) 5000W: 776 X 710 X 1258 MM (30.55 x 27.95 x 49.53 inch) 7000W: 800 X 710 X 1258 MM (31.50 x 27.95 x 49.53 inch) 10000W: 815 X 710 X 1258 MM (32 x 27.95 x 47 inch)
- GROSS DIMENSIONS WITH FLIGHTCASE: 740 X 780 X 1520 mm
- NET WEIGHT: 2500W: 60KG (132 lbs.) 4000W: 82KG (180 lbs.) 5000W: 84KG (185 lbs.) 7000W: 86KG (190 lbs.) 10000W:100KG (220 lbs.)
- HOUSING: Aluminum, steel and plastic components carefully selected for each section for durability, reliability and performance.
- HEAT MANAGEMENT SYSTEM: Air cooling with fans: both at the head and at the base.
- WORKING TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- AMBIENT TEMPERATURES: -25°C to 45°C (-13°F to 113°F)
- CARRYING HANDLES: 4 for ease of transportation
- TRANSPORT WHEELS: 4 with lock mechanism
- MOUNTING PLATE: 1, positioned at the base for permanent installation
- MODELS: 2500W: XMS-2.5KW 4000W: XMS-4KW 5000W: XMS-5KW 7000W: XMS-7KW 10000W: XMS-10KW
- When you want to come up with something more dramatic
- When you want to get a “wow factor”

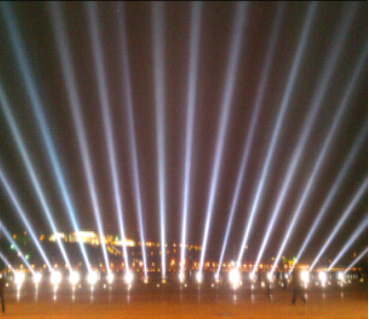

- Create new looks as if wrapped up in a geometric pattern of glittering, powerful beams of light moving in perfect coordination
- Programming synchronized and non-synchronized chasing patterns via DMX makes the light beams even more dramatic
- Performance, Reliability and Durability are great
- Environmentally friendly
Due to continuous improvements, specifications and prices may change without prior notice
