The ADVERTISER LPL 150 3I is a newly developed LED multi-image projector designed for outdoor and indoor use. It is driven by a 100W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
![desc-img](http://www.articulightshop.com/cdn/shop/files/Nike-on-Snow-DESCRIPTION_AREA_SIZE_f99a8b55-963b-49d8-976f-0df0bfb5d8ae.jpg?v=1613730752)
The ADVERTISER LPL 150 3I is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Super power single LED chips precise packed on pure copper board.
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image projection
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Power Supply: AC85V-265V, 50/60Hz
- Power Supply: Auto Switching Power Supply: integrated in the fixture (CE, RoHS) or external (CE, RoHS, UL, KC, CSA, PSE, SAA, SASO)
- Power Consumption: Maximum 220W
- LEDs: CREE COB 150W High Power LED, White Color
- Lumens: 26,000
- Color Temperature: 7000K
- LED Lifespan: >45,000 hours

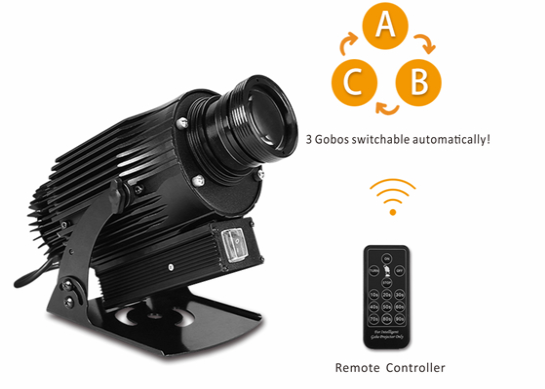

- 3-7 images changing in turn (3 is standard. If you want 4, 5, 6 or 7 images, please specify when ordering). Time interval is controlled by a remote controller.
- Beam Angles: 13°, 30°, 50°
- Focus: Manual in the front like camera
- Zoom: Manual in the front like camera

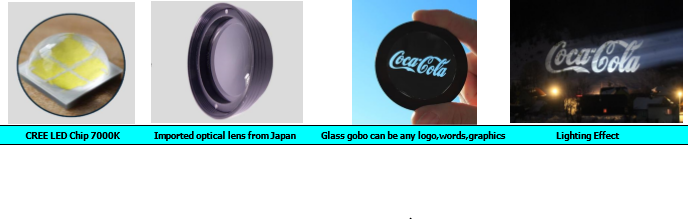

- Lensing Multiple HD lensing system

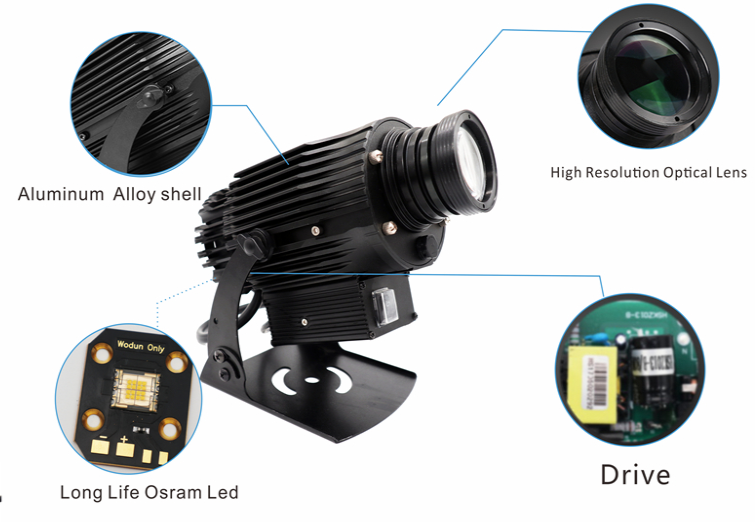

- Thermal management system ensures long life of LEDs
- Cooling: 1 fan and heat sink and extruded fins for heat dissipation
- Housing: Extruded Aluminum AL1070
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -40°C - 60°C (-40°F - 158°F)
- Mounting: Yoke.
- The yoke can run through the length of the projector body to accommodate multiple pointing directions.
- The yoke acts as a stand foot.
- The yoke can be screwed to a wall or a ceiling or fastened with a C clamp.
- Gobo Size: Outer Diameter: 30mm, Inner Diameter: 20mm

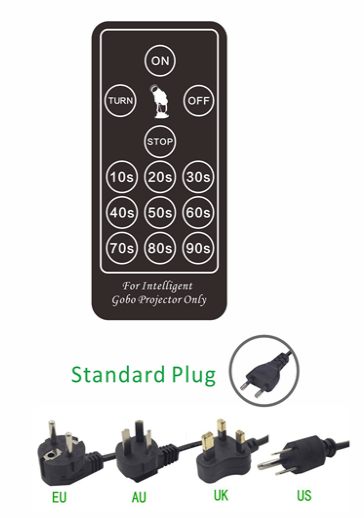

- Remote Control: Yes. Please see below.
- Dimensions: 31 x 21 x 26 cm (12.20” x 8.27” x 10.24”)
- Weight: 5.5 kgs (12.1 lbs)
- Model: RDN-150-LPL-3
![tab-img](http://www.articulightshop.com/cdn/shop/files/BEAM_ANGLE-_ADVERTISER_LPL_100_3l.png?v=1613730554)
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Super power single LED chips precise packed on pure copper board.
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Outdoor and Indoor use
- Multi-image projection
- Innovative multi-purpose mounting yoke
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Elegant and compact design
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
TECHNICAL SPECIFICATIONS
- Power Supply: AC85V-265V, 50/60Hz
- Power Supply: Auto Switching Power Supply: integrated in the fixture (CE, RoHS) or external (CE, RoHS, UL, KC, CSA, PSE, SAA, SASO)
- Power Consumption: Maximum 220W
- LEDs: CREE COB 150W High Power LED, White Color
- Lumens: 26,000
- Color Temperature: 7000K
- LED Lifespan: >45,000 hours
- 3-7 images changing in turn (3 is standard. If you want 4, 5, 6 or 7 images, please specify when ordering). Time interval is controlled by a remote controller.
- Beam Angles: 13°, 30°, 50°
- Focus: Manual in the front like camera
- Zoom: Manual in the front like camera
- Lensing Multiple HD lensing system
- Thermal management system ensures long life of LEDs
- Cooling: 1 fan and heat sink and extruded fins for heat dissipation
- Housing: Extruded Aluminum AL1070
- Housing Color: Black
- IP Rating: IP65
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -40°C - 60°C (-40°F - 158°F)
- Mounting: Yoke.
- The yoke can run through the length of the projector body to accommodate multiple pointing directions.
- The yoke acts as a stand foot.
- The yoke can be screwed to a wall or a ceiling or fastened with a C clamp.
- Gobo Size: Outer Diameter: 30mm, Inner Diameter: 20mm
- Remote Control: Yes. Please see below.
- Dimensions: 31 x 21 x 26 cm (12.20” x 8.27” x 10.24”)
- Weight: 5.5 kgs (12.1 lbs)
- Model: RDN-150-LPL-3
BEAM ANGLE
![tab-img](http://www.articulightshop.com/cdn/shop/files/BEAM_ANGLE-_ADVERTISER_LPL_100_3l.png?v=1613730554)
The ADVERTISER LPL 150 3I is the foundation of a new mass-market and POP marketing system that broadens creative options, improves efficiency, and lowers overall production costs. It can be used together with existing forms of POP advertising, display and promotional graphics - or replace them.

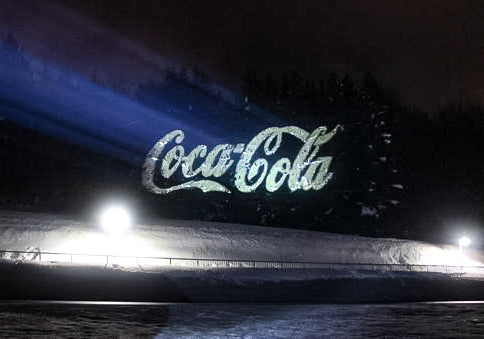

The ADVERTISER LPL 150 3I can help centralize or decentralize corporate advertising and promotional campaigns. Create a consistent message at several locations - or tailor art to suit specific needs. It is ideal for ceilings, walls, truss and floor or where you need that extra punch to cut through ambient light. If you want to lift your image, the ADVERTISER LPL 150 3I is the answer.
The ADVERTISER LPL 150 3I projector is equipped with an LED light source designed to work for the full lifetime of the projector so there is no need for a replacement lamp thus saving you a lot of money not only on the lamp replacement but on maintenance as well.

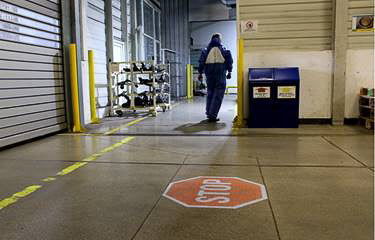

Industrial and business enterprises are increasingly aware of the opportunities and benefits brought by the projection of navigation, hazard and safety signs.
Replacing painted safety labels or stickers because they wear off easily in heavy traffic, restoration is time consuming and its cost is high.

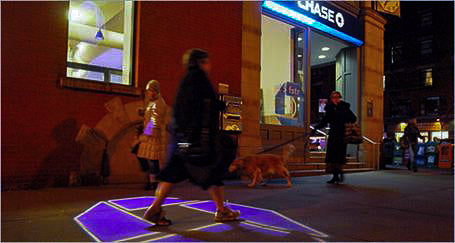

The ADVERTISER LPL 150 3I is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.
