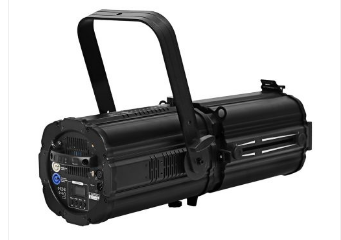

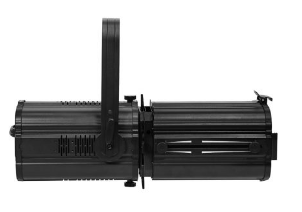

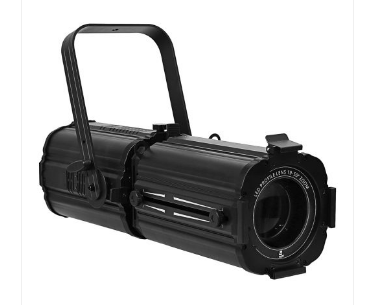

The RADIANT ZM400 RGBAL is a newly developed zoom LED image and framing RGBAL projector. It is driven by a 400W advance power LED COB RGBAL module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class. The RADIANT ZM400 RGBAL rivals classic high power discharge projectors at much lower cost, power consumption and size.
![desc-img](http://www.articulightshop.com/cdn/shop/files/image004_4.jpg?v=1613744516)
Thanks to the power and data facilities, multiple projectors can be linked and controlled, something that museums, galleries and other venues can greatly appreciate.
The RADIANT ZM400 RGBAL is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) technology.
- COB (Chip-On-Board) LED Technology.
- Color Rendering Index (CRI) > 90
- 16Bit dimming makes light output softer and more exquisite. 4 dimming curves can be selected.
- Introduce the top Color Calibration System (CCS) to correct the color of each lamp. So as to solve the problem of LED color output inconsistent (known as “black technology”).
- Compact design, Light weight and Cooling system using heat pipe heat dissipation (1000 times faster than aluminum).
- Power Supply: AC100V-240V, 50/60Hz
- Power Consumption: 400W
- LEDs: COB 400W LED, 5 in 1, RGBAL
- Color Rendering Index(CRI): > 90
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Voltage

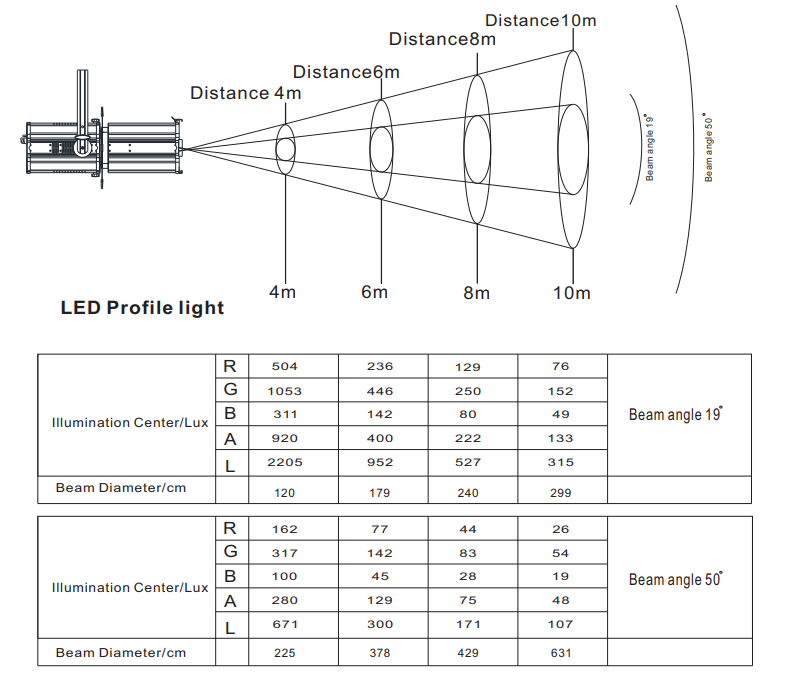

- Beam Angle: Zoom 17° ‾ 50°
- Control Mode: RDM, DMX512, LCD display+4 soft keys, 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 12
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs

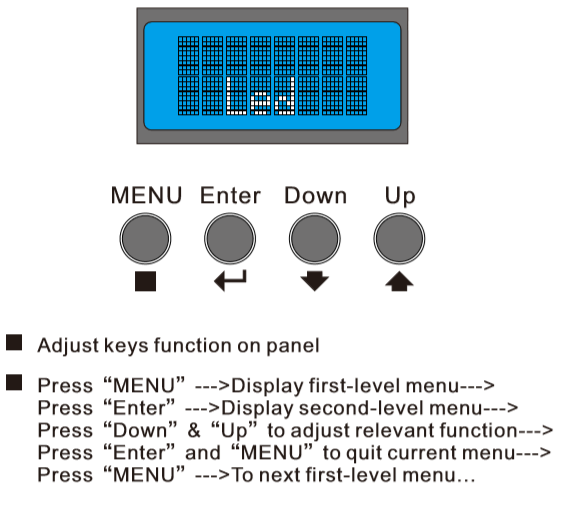

- Control Panel: Digital alphanumeric
- Cooling System: Entire housing as a heat sink
- DMX Data In/Out: both XLR 3 Pin (5 pin available)

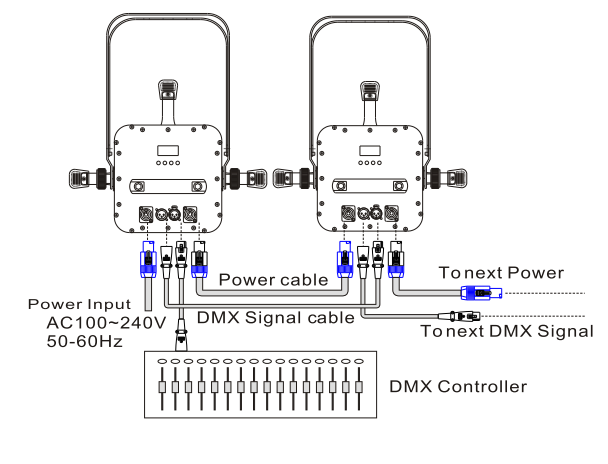

- Power In/Out: Power Con In/Out, Daisy Chain up to 2 fixtures
- Data Chain: up to 30 fixtures
- Housing: Aluminum
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C ‾ 40°C (-4°F ‾ 104°F)
- Mounting: Yoke, please see below.
- Dimensions: L64.8 x H26.0 x W34.0 cm (25.40” X 10.24” X 13.39”)
- Weight: 13.3kgs (29.3 lbs)
![tab-img](http://www.articulightshop.com/cdn/shop/files/image003_6.png?v=1613744517)
![tab-img](http://www.articulightshop.com/cdn/shop/files/image007_7.png?v=1613744517)
![tab-img](http://www.articulightshop.com/cdn/shop/files/image008_9.png?v=1613744517)
FEATURES
- Solid State LED Lighting (SSL) technology.
- COB (Chip-On-Board) LED Technology.
- Color Rendering Index (CRI) > 90
- 16Bit dimming makes light output softer and more exquisite. 4 dimming curves can be selected.
- Introduce the top Color Calibration System (CCS) to correct the color of each lamp. So as to solve the problem of LED color output inconsistent (known as “black technology”).
- Compact design, Light weight and Cooling system using heat pipe heat dissipation (1000 times faster than aluminum).
TECHNICAL SPECIFICATIONS
- Power Supply: AC100V-240V, 50/60Hz
- Power Consumption: 400W
- LEDs: COB 400W LED, 5 in 1, RGBAL
- Color Rendering Index(CRI): > 90
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Voltage
- Beam Angle: Zoom 17° ‾ 50°
- Control Mode: RDM, DMX512, LCD display+4 soft keys, 4 selectable dimming curves, Master/Slave, Stand-alone
- DMX Channels: 12
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs
- Control Panel: Digital alphanumeric
- Cooling System: Entire housing as a heat sink
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: Power Con In/Out, Daisy Chain up to 2 fixtures
- Data Chain: up to 30 fixtures
- Housing: Aluminum
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, RoHS, EMC
- Environment Temperatures: -20°C ‾ 40°C (-4°F ‾ 104°F)
- Mounting: Yoke, please see below.
- Dimensions: L64.8 x H26.0 x W34.0 cm (25.40” X 10.24” X 13.39”)
- Weight: 13.3kgs (29.3 lbs)

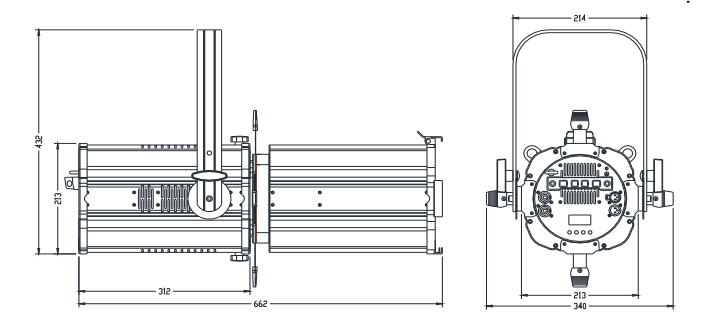

DIMENSIONS
![tab-img](http://www.articulightshop.com/cdn/shop/files/image003_6.png?v=1613744517)

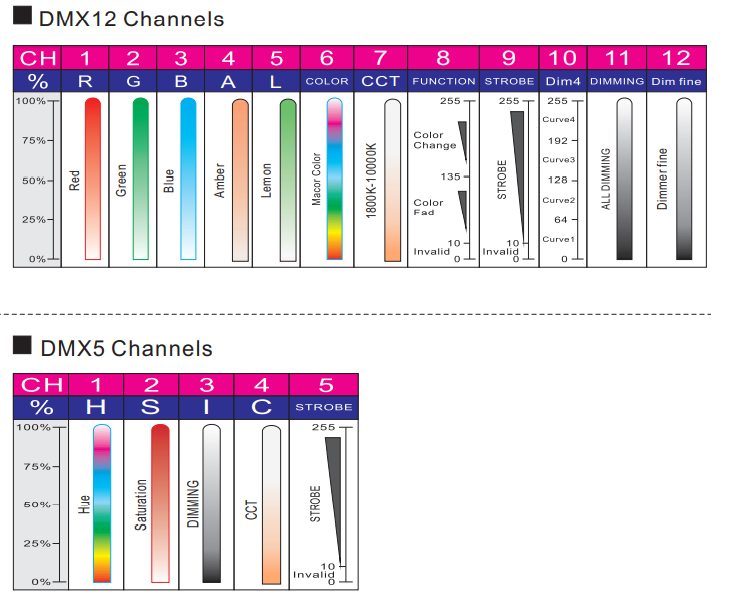

DMX CHANNELS
![tab-img](http://www.articulightshop.com/cdn/shop/files/image007_7.png?v=1613744517)
FUNCTIONS
![tab-img](http://www.articulightshop.com/cdn/shop/files/image008_9.png?v=1613744517)

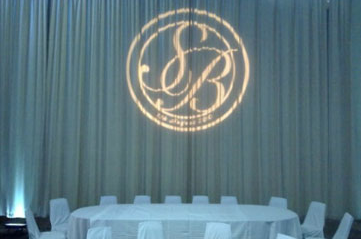

- Logos & Texts

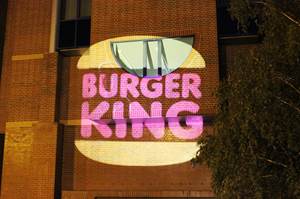

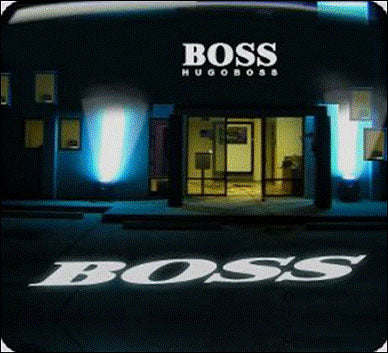

- Advertising & Messaging Projection

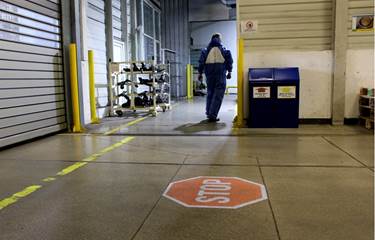

- Navigation & Safety Sign

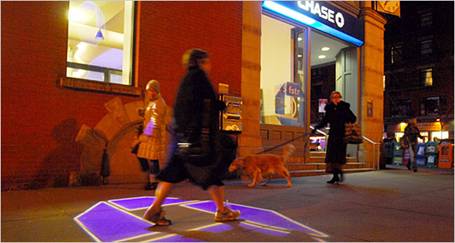

- Floor, Wall & Ceiling Markings
- Lighting Decorations
- Holiday Decorations
Due to continuous improvements, specifications and prices may change without prior notice
For Specials and Quantity Discounts, please contact us.
