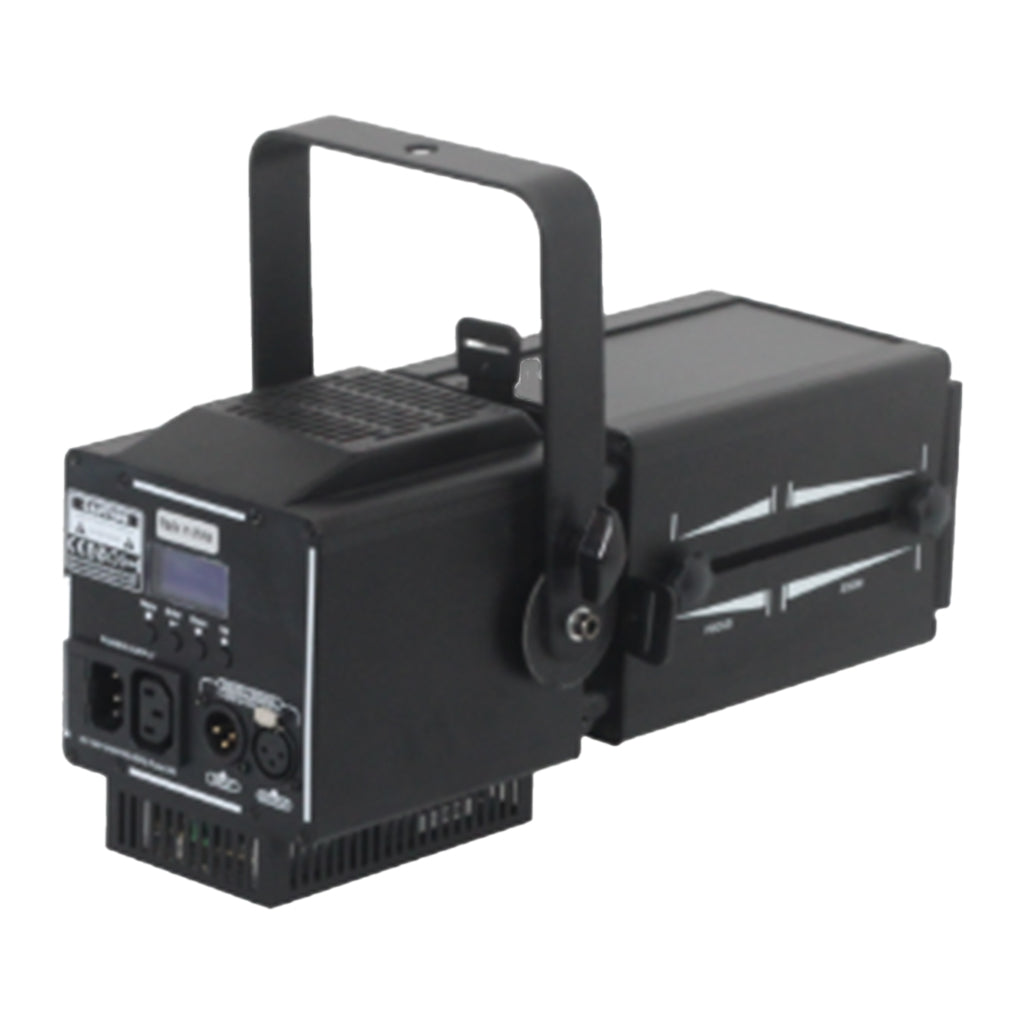

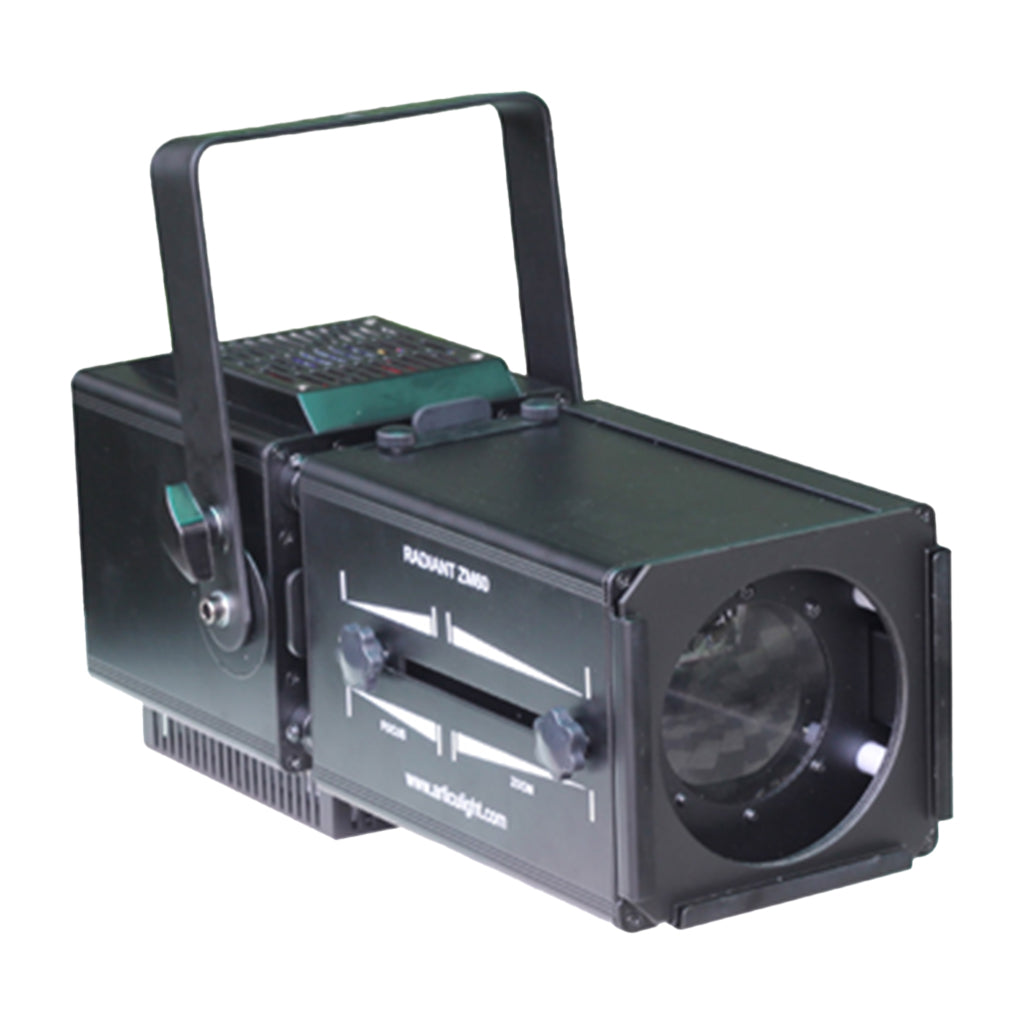

The RADIANT ZM60™ is a newly developed zoom LED image and framing projector. It is driven by a 60W advance power LED COB white module and is equipped with high quality optical system designed to yield maximum light output and high definition beam producing impressive graphics which surpass the effects of fixtures in its class.
![desc-img](http://www.articulightshop.com/cdn/shop/files/BurgerKing-on-wall-DESCRIPTION_AREA_SIZE.jpg?v=1613730751)
The RADIANT ZM60™ rivals classic high power discharge projectors at much lower cost, power consumption and size. Thanks to the power and data facilities, multiple projectors can be linked and controlled, something that museums, galleries and other venues can greatly appreciate.
The RADIANT ZM60™ is easy to install and operate and is light weight housed in a stylish and functional housing.
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Zoom facility enables better control on the size of the image
- DMX 512 control technology
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- A variety of lenses to meet diverse projection requirements
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
- Power Supply: AC90V-240V, 50/60Hz
- Auto Switching Power Supply
- Power Consumption: Maximum 60W
- LEDs: COB 60W High Power LED, White Color
- Color Temperature: 3200K or 6500K
- Color Rendering Index (CRI): 3200K Ra>95; 6500K Ra>90%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Drive Current (mA): 1.9A
- Lumens (Lm): 7,000
- Zoom Beam Angle:17° - 35°
- Zoom: Manually with 2 knobs for easy accurate operation
- Focus: Manually with 2 knobs for easy accurate operation
- Lenses: 2 to control zoom and focus
- Gobo Size: Outer Diameter: 37.5mm, Inner Diameter: 20mm

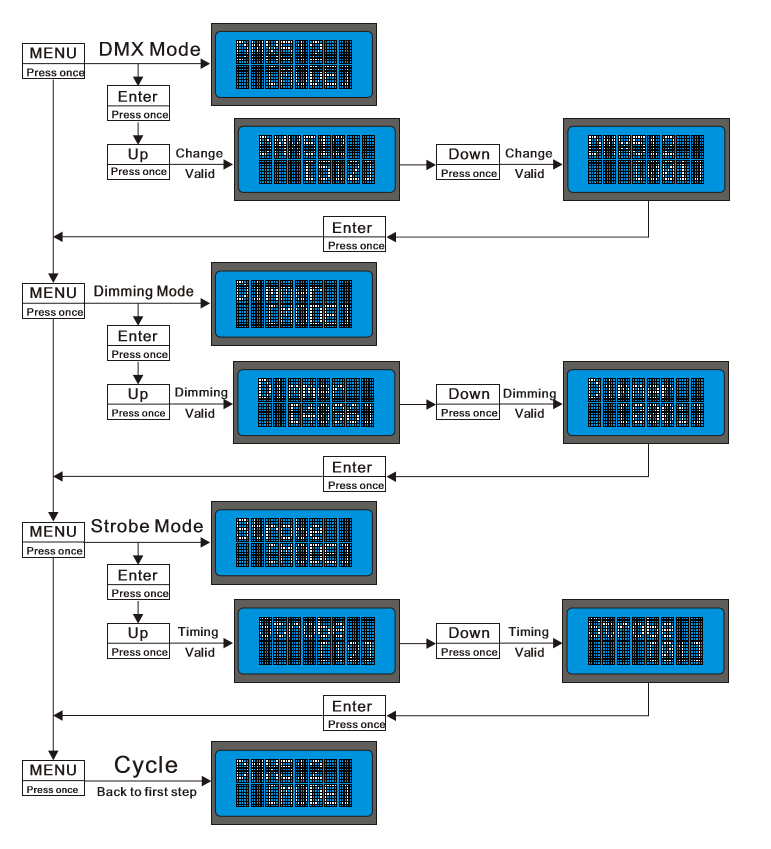

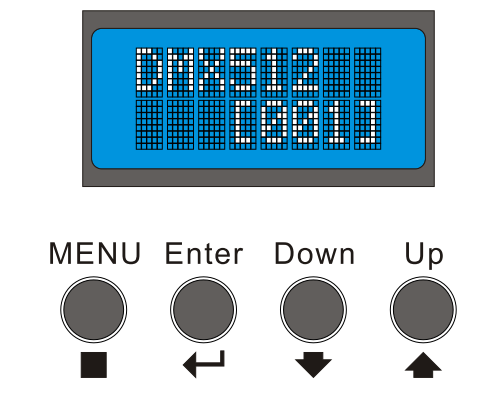

- Control: LCD display plus 4 soft keys; 4 selectable dimming curves; Master/Slave, Stand-alone
- DMX Channels: 3
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: Strobe speed from slow to fast
- CH3: DIM4
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs

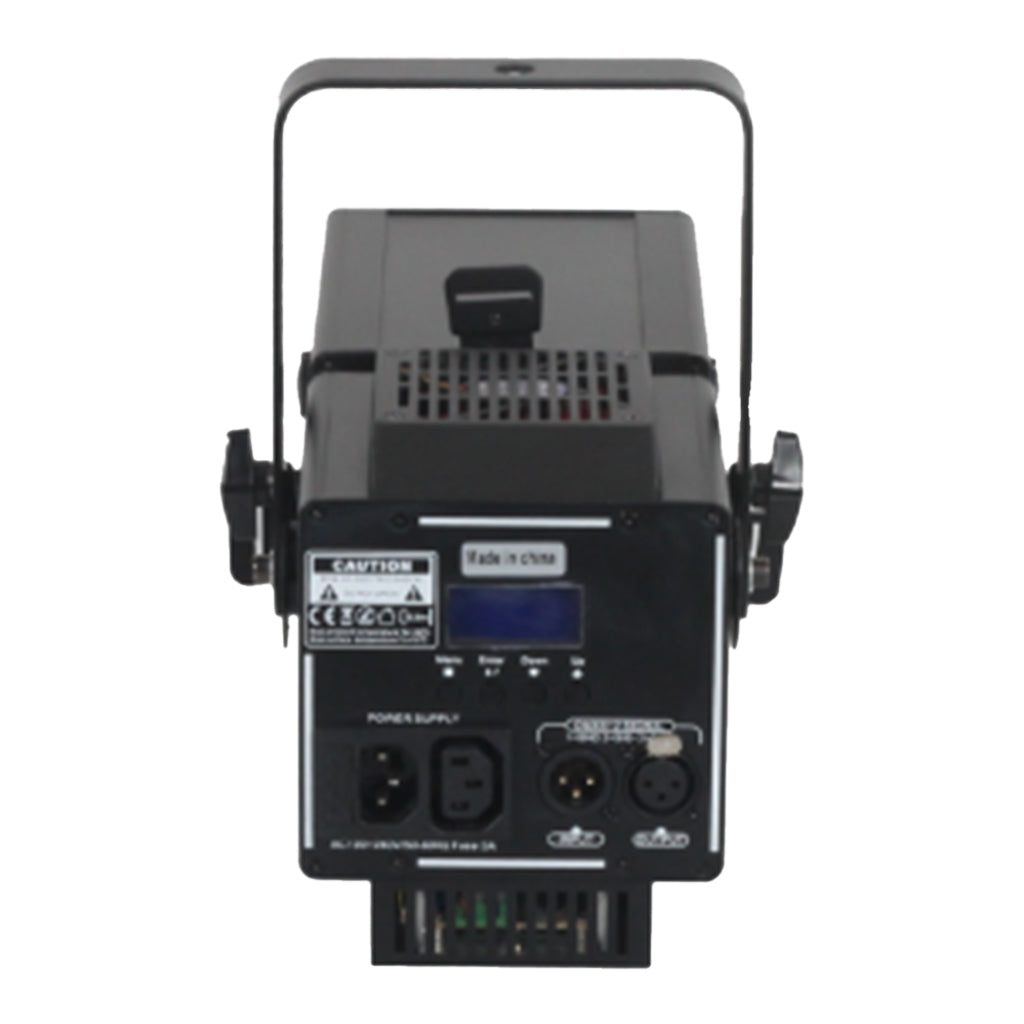

- Control Panel: Digital alphanumeric
- Cooling: Silent cooling fan with a heat pipe cooling system
- DMX Data In/Out: both XLR 3 Pin (5 pin available)

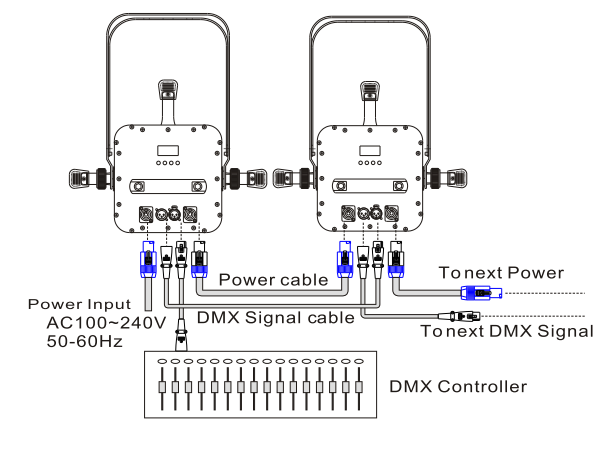

- Power In/Out: IEC. Daisy Chain up to 10 fixtures
- Data Chain: up to 32 fixtures
- Housing: Extruded aluminum
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke, please see below.

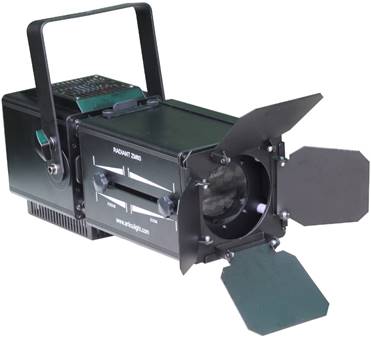

- 4 framing shutter blades included
- Color filter frame available
- Gobo holder included
- Dimensions: See below. 35 x 16 x 18 cm (13.78” x 6.30” x 7”)
- Weight: 3.5 kgs (7.7 lbs)
- Model: MRZ-60
![tab-img](http://www.articulightshop.com/cdn/shop/files/DMX-CHANNELS-RADIANT_ZM60.png?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/DIMENSIONS_01-RADIANT_ZM60.jpg?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/DIMENSIONS_02-RADIANT_ZM60.jpg?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/DIMENSIONS_03-RADIANT_ZM60.jpg?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/PHOTOMETRIC-RADIANT_ZM60.jpg?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/MOUNTING-RADIANT_ZM60.jpg?v=1613720927)
FEATURES
- Solid State LED Lighting (SSL) Technology
- COB (Chip-On-Board) White LED technology
- Rivals and replaces HID and halogen lamps with a fraction of power consumption
- Zoom facility enables better control on the size of the image
- DMX 512 control technology
- Gobo projection
- Framing projection
- Long life LED light source requires no replacement during the life of the projector
- Compact and lightweight
- A variety of lenses to meet diverse projection requirements
- Enables you to create the look you want, and change it easily and quickly
- Very user friendly, very easy to use
- Stunning brightness
- Extremely accurate focus
- Low running cost
- Energy efficiency
- No IR and no UV
- No Mercury
- Virtually maintenance free
- Built-in Dimmer
- Dimming options
- Different color temperatures to meet various creative requirements
- Meets CE, UL and GB7000.15--2000 standards.
TECHNICAL SPECIFICATIONS
- Power Supply: AC90V-240V, 50/60Hz
- Auto Switching Power Supply
- Power Consumption: Maximum 60W
- LEDs: COB 60W High Power LED, White Color
- Color Temperature: 3200K or 6500K
- Color Rendering Index (CRI): 3200K Ra>95; 6500K Ra>90%
- LED Lifespan: >50,000 hours
- Flicker Free (Refresh Rate >1000 Hz)
- Drive Mode: Constant Current
- Drive Current (mA): 1.9A
- Lumens (Lm): 7,000
- Zoom Beam Angle:17° - 35°
- Zoom: Manually with 2 knobs for easy accurate operation
- Focus: Manually with 2 knobs for easy accurate operation
- Lenses: 2 to control zoom and focus
- Gobo Size: Outer Diameter: 37.5mm, Inner Diameter: 20mm
- Control: LCD display plus 4 soft keys; 4 selectable dimming curves; Master/Slave, Stand-alone
- DMX Channels: 3
- DMX Channel Assignment:
- CH1: Dimmer intensity 0-100%
- CH2: Strobe speed from slow to fast
- CH3: DIM4
- Electronic Dimmer: 0-100% linear dimmer
- Electronic Strobe: 1-20 flashes/second
- Thermal management system ensures long life of LEDs
- Control Panel: Digital alphanumeric
- Cooling: Silent cooling fan with a heat pipe cooling system
- DMX Data In/Out: both XLR 3 Pin (5 pin available)
- Power In/Out: IEC. Daisy Chain up to 10 fixtures
- Data Chain: up to 32 fixtures
- Housing: Extruded aluminum
- Housing Color: Black, other colors are available
- IP Rating: IP20
- Listing: CE, LVD, RoHS, EMC
- Environment Temperatures: -20°C - 40°C (-4°F - 104°F)
- Mounting: Yoke, please see below.
- 4 framing shutter blades included
- Color filter frame available
- Gobo holder included
- Dimensions: See below. 35 x 16 x 18 cm (13.78” x 6.30” x 7”)
- Weight: 3.5 kgs (7.7 lbs)
- Model: MRZ-60

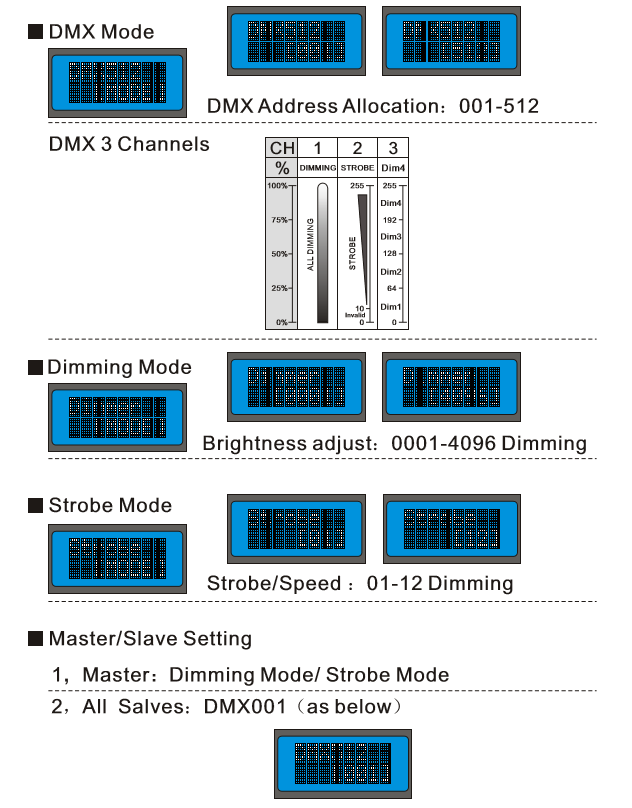

DMX CHANNELS
![tab-img](http://www.articulightshop.com/cdn/shop/files/DMX-CHANNELS-RADIANT_ZM60.png?v=1613720927)
DIMENSIONS
![tab-img](http://www.articulightshop.com/cdn/shop/files/DIMENSIONS_01-RADIANT_ZM60.jpg?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/DIMENSIONS_02-RADIANT_ZM60.jpg?v=1613720927)
![tab-img](http://www.articulightshop.com/cdn/shop/files/DIMENSIONS_03-RADIANT_ZM60.jpg?v=1613720927)
PHOTOMETRIC DATA
![tab-img](http://www.articulightshop.com/cdn/shop/files/PHOTOMETRIC-RADIANT_ZM60.jpg?v=1613720927)
MOUNTING
![tab-img](http://www.articulightshop.com/cdn/shop/files/MOUNTING-RADIANT_ZM60.jpg?v=1613720927)

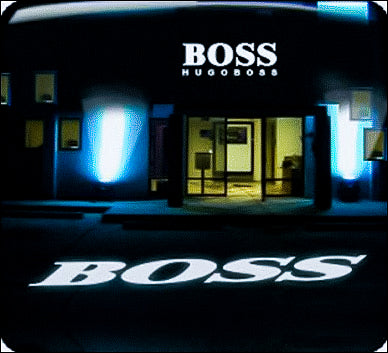

The RADIANT ZM60™ is ideal for store fronts, window displays, POP displays, indoor advertising, or architectural, entertainment and hospitality venues. Corporations and franchises are discovering the marketing power of this projector, and how it can save time, cut costs, and project a strong image to capture consumer attention.
The RADIANT ZM60™ is the foundation of a new mass-market and POP marketing system that broadens creative options, improves efficiency, and lowers overall production costs. It can be used together with existing forms of POP advertising, display and promotional graphics - or replace them.
The RADIANT ZM60™ can help centralize or decentralize corporate advertising and promotional campaigns. Create a consistent message at several locations - or tailor art to suit specific needs. It is ideal for ceilings, walls, truss and floor or where you need that extra punch to cut through ambient light.
If you want to lift your image, the RADIANT ZM60™ is the answer. The RADIANT ZM60™ projector is equipped with an LED light source designed to work for the full lifetime of the projector so there is no need for a replacement lamp thus saving you a lot of money not only on the lamp replacement but on maintenance as well.

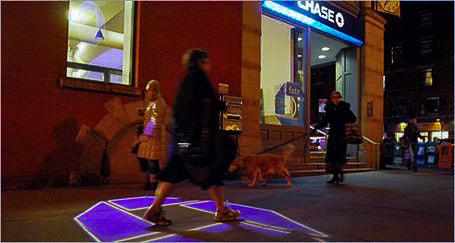

The RADIANT ZM60™ is an ideal solution for floor marking, it’s more efficient and requires minimal maintenance.
The RADIANT ZM60™ projectors can be connected to a motion sensor or timer, and if necessary the projected image can be replaced or repositioned.
Thanks to the DMX512 technology, the RADIANT ZM60™ can be programmed, if desired, producing dynamic effects of dimming and flashing.
